Home > Products > Isolators > Optoisolators - Transistor, Photovoltaic Output > MOC8204SR2M

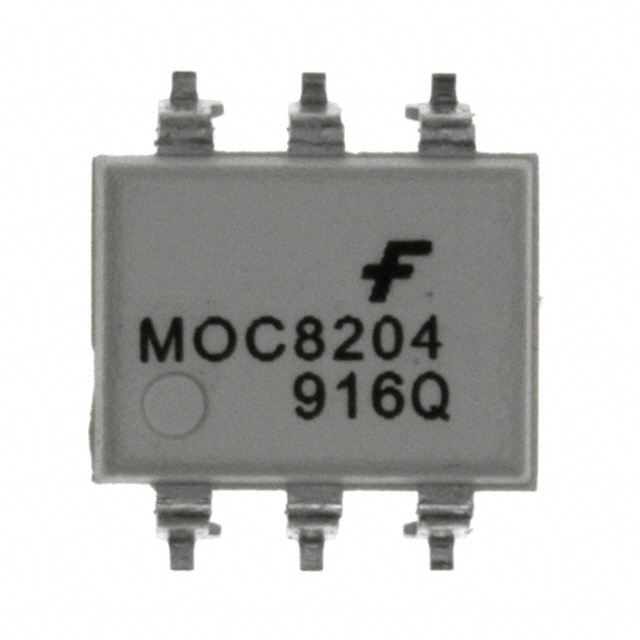

MOC8204SR2M

MOC8204SR2M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MOC8204SR2M with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number MOC8204SR2M
Manufacturer AMI Semiconductor / ON Semiconductor
Description OPTOISO 4.17KV TRANS W/BASE 6SMD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 89555 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs100 pcs500 pcs
$0.627$0.508$0.352$0.266

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.627

Product parameter

Part Number MOC8204SR2M Manufacturer AMI Semiconductor / ON Semiconductor
Description OPTOISO 4.17KV TRANS W/BASE 6SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 89555 pcs Data sheet H11D1M-3M, 4N38M, MOC8204M
Category Isolators Voltage - Output (Max) 400V
Voltage - Isolation 4170Vrms Voltage - Forward (Vf) (Typ) 1.15V
Vce Saturation (Max) 400mV Turn On / Turn Off Time (Typ) 5µs, 5µs
Supplier Device Package 6-SMD Series -
Rise / Fall Time (Typ) - Packaging Original-Reel®
Package / Case 6-SMD, Gull Wing Output Type Transistor with Base
Other Names MOC8204SR2M-ND
MOC8204SR2MDKR		 Operating Temperature -40°C ~ 100°C
Number of Channels 1 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 9 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Input Type DC
Detailed Description Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-SMD Current Transfer Ratio (Min) 20% @ 10mA
Current Transfer Ratio (Max) - Current - Output / Channel 100mA
Current - DC Forward (If) (Max) 80mA
