Home > Products > Isolators > Optoisolators - Transistor, Photovoltaic Output > MOC8204M

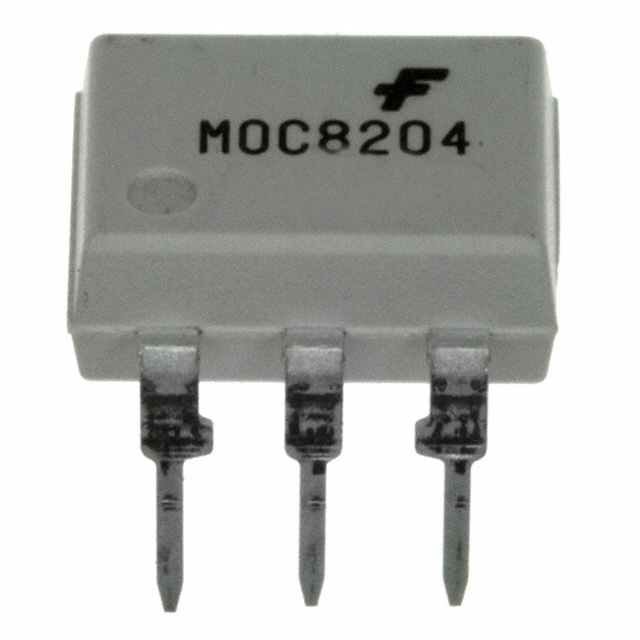

MOC8204M

MOC8204M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MOC8204M with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number MOC8204M
Manufacturer AMI Semiconductor / ON Semiconductor
Description OPTOISO 4.17KV TRANS W/BASE 6DIP
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 119245 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs100 pcs500 pcs1000 pcs
$0.523$0.427$0.295$0.223$0.184

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.523

Product parameter

Part Number MOC8204M Manufacturer AMI Semiconductor / ON Semiconductor
Description OPTOISO 4.17KV TRANS W/BASE 6DIP Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 119245 pcs Data sheet H11D1M-3M, 4N38M, MOC8204M
Category Isolators Voltage - Output (Max) 400V
Voltage - Isolation 4170Vrms Voltage - Forward (Vf) (Typ) 1.15V
Vce Saturation (Max) 400mV Turn On / Turn Off Time (Typ) 5µs, 5µs
Supplier Device Package 6-DIP Series -
Rise / Fall Time (Typ) - Packaging Tube
Package / Case 6-DIP (0.300", 7.62mm) Output Type Transistor with Base
Operating Temperature -40°C ~ 100°C Number of Channels 1
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 9 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Input Type DC Detailed Description Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-DIP
Current Transfer Ratio (Min) 20% @ 10mA Current Transfer Ratio (Max) -
Current - Output / Channel 100mA Current - DC Forward (If) (Max) 80mA
