MOC8101

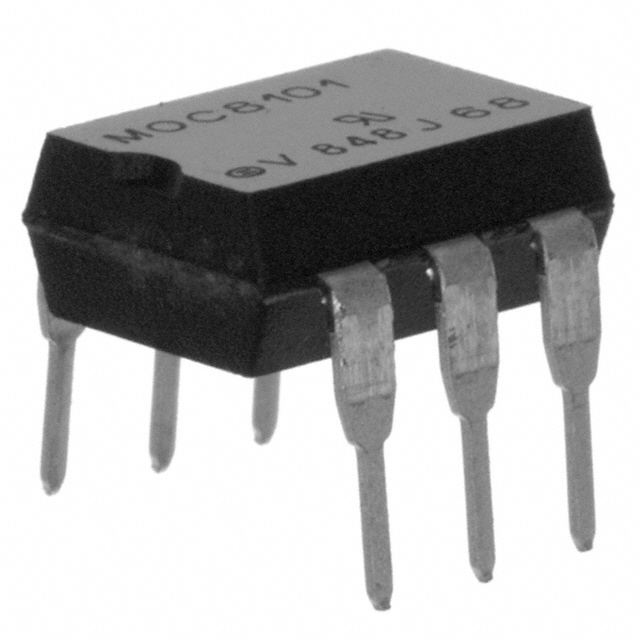

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MOC8101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MOC8101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MOC8101 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISOLATOR 5.3KV TRANS 6-DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MOC8101 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISOLATOR 5.3KV TRANS 6-DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5376 pcs | Data sheet | CNY171-74, CNY17F1-F4, MOC8101-08 |
| Category | Isolators | Voltage - Output (Max) | 30V |
| Voltage - Isolation | 5300Vrms | Voltage - Forward (Vf) (Typ) | 1.15V |
| Vce Saturation (Max) | 400mV | Turn On / Turn Off Time (Typ) | 2µs, 3µs |
| Supplier Device Package | 6-DIP | Series | - |
| Rise / Fall Time (Typ) | 1µs, 2µs | Packaging | Tube |
| Package / Case | 6-DIP (0.300", 7.62mm) | Output Type | Transistor |
| Operating Temperature | -55°C ~ 100°C | Number of Channels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor Output 5300Vrms 1 Channel 6-DIP | Current Transfer Ratio (Min) | 50% @ 10mA |
| Current Transfer Ratio (Max) | 80% @ 10mA | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 100mA |
