MOC8100M

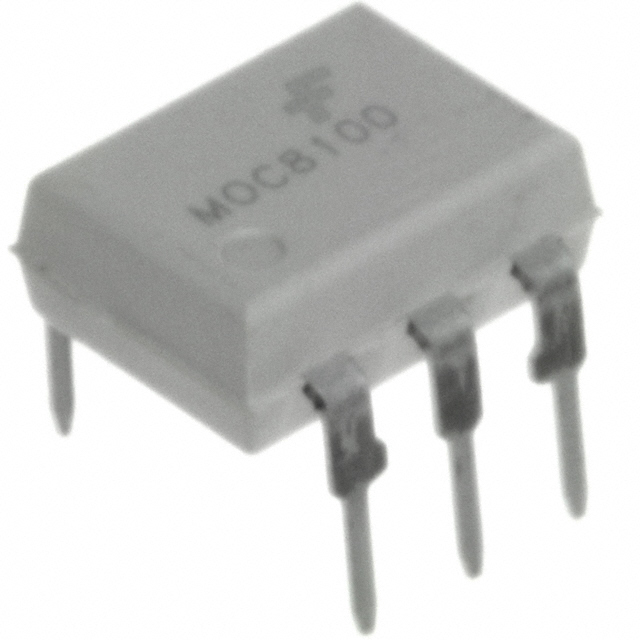

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MOC8100M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MOC8100M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MOC8100M |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISO 7.5KV TRANS W/BASE 6DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MOC8100M | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISO 7.5KV TRANS W/BASE 6DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4060 pcs | Data sheet | TIL111M,117M, MOC8100M |
| Category | Isolators | Voltage - Output (Max) | 30V |
| Voltage - Isolation | 7500Vpk | Voltage - Forward (Vf) (Typ) | 1.2V |
| Vce Saturation (Max) | 500mV | Turn On / Turn Off Time (Typ) | 20µs, 20µs (Max) |
| Supplier Device Package | 6-DIP | Series | - |
| Rise / Fall Time (Typ) | 2µs, 2µs | Packaging | Tube |
| Package / Case | 6-DIP (0.300", 7.62mm) | Output Type | Transistor with Base |
| Other Names | MOC8100-M | Operating Temperature | -55°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC | Detailed Description | Optoisolator Transistor with Base Output 7500Vpk 1 Channel 6-DIP |
| Current Transfer Ratio (Min) | 30% @ 1mA | Current Transfer Ratio (Max) | - |
| Current - Output / Channel | - | Current - DC Forward (If) (Max) | 60mA |
