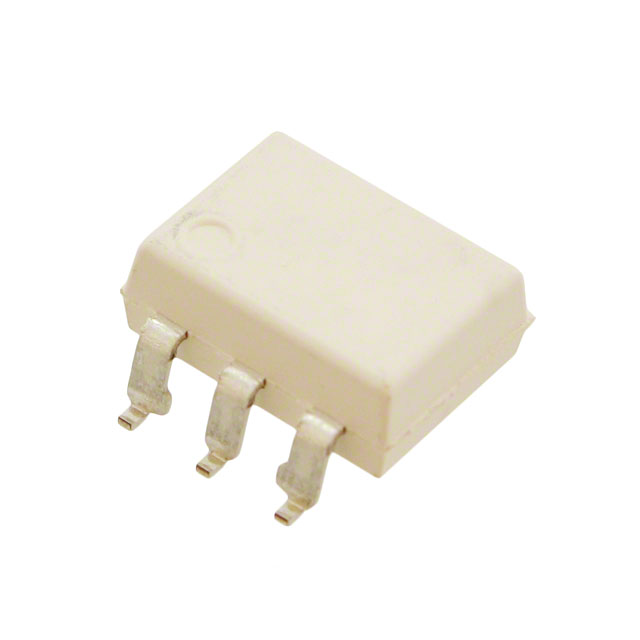

MOC3022SR2M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MOC3022SR2M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MOC3022SR2M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MOC3022SR2M |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISOLATOR 4.17KV TRIAC 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 5000 pcs | 10000 pcs | 25000 pcs |
|---|---|---|---|---|---|
| $0.132 | $0.123 | $0.119 | $0.117 | $0.114 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | MOC3022SR2M | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISOLATOR 4.17KV TRIAC 6SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 203246 pcs | Data sheet | MOC3010-12M, MOC3020-23M |
| Category | Isolators | Zero Crossing Circuit | No |
| Voltage - Off State | 400V | Voltage - Isolation | 4170Vrms |
| Voltage - Forward (Vf) (Typ) | 1.15V | Turn On Time | - |
| Supplier Device Package | 6-SMD | Static dV/dt (Min) | - |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, Gull Wing | Output Type | Triac |
| Other Names | MOC3022SR2M-ND MOC3022SR2MTR |
Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | Optoisolator Triac Output 4170Vrms 1 Channel 6-SMD |
| Current - LED Trigger (Ift) (Max) | 10mA | Current - Hold (Ih) | 100µA (Typ) |
| Current - DC Forward (If) (Max) | 60mA | Approvals | UL |
