MOC3022SM

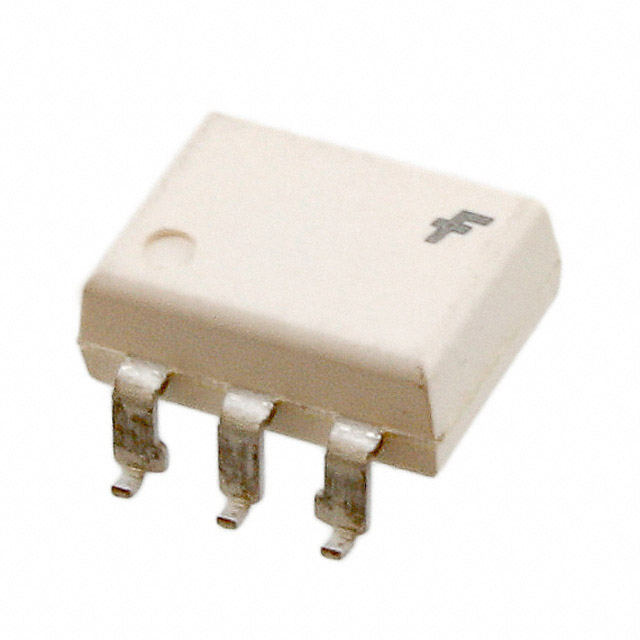

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MOC3022SM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MOC3022SM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MOC3022SM |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISOLATOR 4.17KV TRIAC 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.382 | $0.297 | $0.212 | $0.161 | $0.127 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | MOC3022SM | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISOLATOR 4.17KV TRIAC 6SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 157537 pcs | Data sheet | MOC3010-12M, MOC3020-23M |
| Category | Isolators | Zero Crossing Circuit | No |
| Voltage - Off State | 400V | Voltage - Isolation | 4170Vrms |
| Voltage - Forward (Vf) (Typ) | 1.15V | Turn On Time | - |
| Supplier Device Package | 6-SMD | Static dV/dt (Min) | - |
| Series | - | Packaging | Tube |
| Package / Case | 6-SMD, Gull Wing | Output Type | Triac |
| Operating Temperature | -40°C ~ 85°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Optoisolator Triac Output 4170Vrms 1 Channel 6-SMD | Current - LED Trigger (Ift) (Max) | 10mA |
| Current - Hold (Ih) | 100µA (Typ) | Current - DC Forward (If) (Max) | 60mA |
| Approvals | UL |
