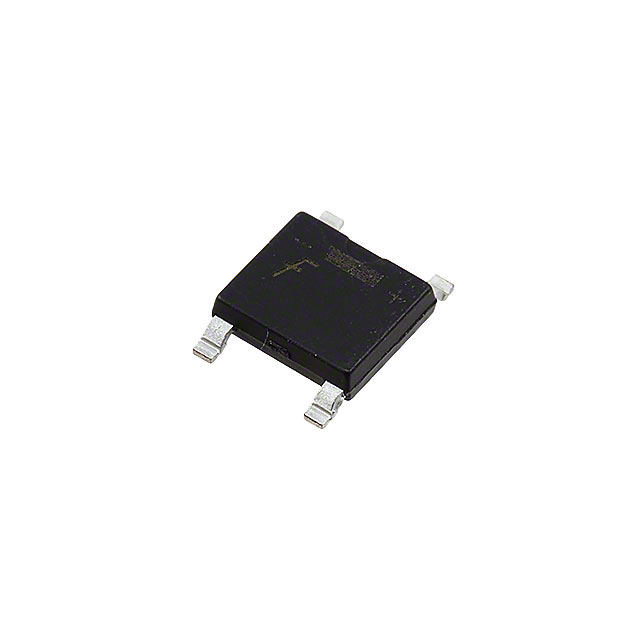

MDB10SV
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDB10SV with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MDB10SV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MDB10SV |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | RECT BRIDGE 1.2A 1000V MICRO DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | 8000 pcs | 12000 pcs | 28000 pcs | |
|---|---|---|---|---|---|
| $0.044 | $0.041 | $0.039 | $0.035 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MDB10SV | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | RECT BRIDGE 1.2A 1000V MICRO DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 677827 pcs | Data sheet | MDB10SV |
| Category | Discrete Semiconductor Products | Voltage - Peak Reverse (Max) | 1kV |
| Voltage - Forward (Vf) (Max) @ If | 1.015V @ 1.2A | Technology | Standard |
| Supplier Device Package | 4-MicroDIP/SMD | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 4-SMD, Gull Wing |
| Other Names | MDB10SVTR | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Diode Type | Single Phase |
| Detailed Description | Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-MicroDIP/SMD | Current - Reverse Leakage @ Vr | 10µA @ 1000V |
| Current - Average Rectified (Io) | 1.2A | Base Part Number | MDB10 |
