MDB10S

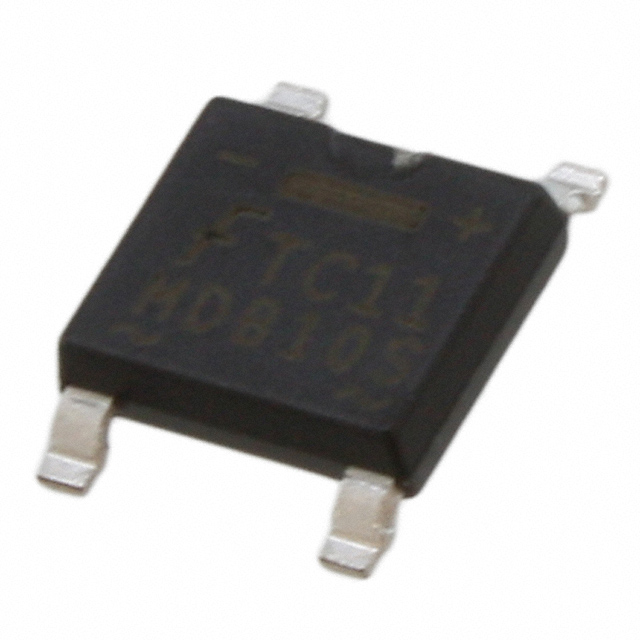

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDB10S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MDB10S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MDB10S |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC BRIDGE DIODE 1000V 4-MICRODIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | 8000 pcs | 12000 pcs | 28000 pcs | 100000 pcs |
|---|---|---|---|---|---|
| $0.045 | $0.043 | $0.04 | $0.037 | $0.034 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | MDB10S | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC BRIDGE DIODE 1000V 4-MICRODIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 659939 pcs | Data sheet | MDB(6,8,10)S |
| Category | Discrete Semiconductor Products | Voltage - Peak Reverse (Max) | 1kV |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 1A | Technology | Standard |
| Supplier Device Package | 4-MicroDIP/SMD | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 4-SMD, Gull Wing |
| Other Names | MDB10SFSTR | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Single Phase | Detailed Description | Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-MicroDIP/SMD |
| Current - Reverse Leakage @ Vr | 10µA @ 1000V | Current - Average Rectified (Io) | 1A |
| Base Part Number | MDB10 |
