Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - LED Drivers > LV52206XAEVB

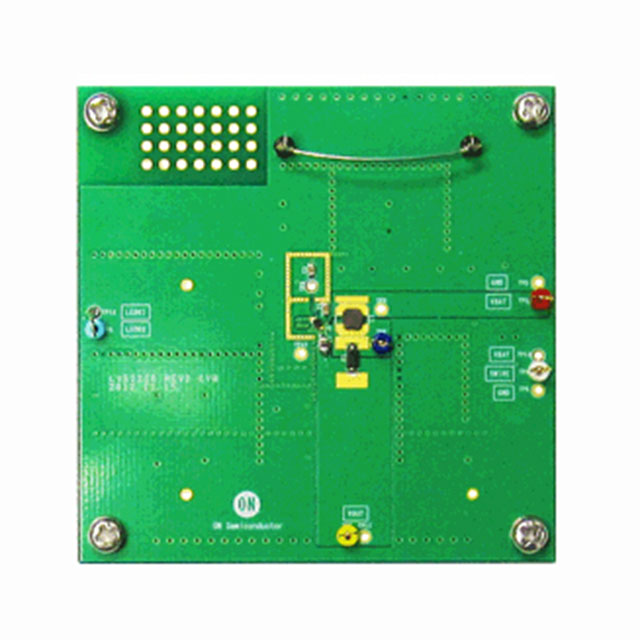

LV52206XAEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LV52206XAEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LV52206XAEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD LV52206XA
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1392 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$22.466

Product parameter
Data sheet

Product parameter

Part Number	LV52206XAEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD LV52206XA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1392 pcs	Data sheet	LV52206XAEVB Test Procedure LV52206XA
Category	Development Boards, Kits, Programmers	Voltage - Output	-
Voltage - Input	2.7 V ~ 5.5 V	Utilized IC / Part	LV52206
Supplied Contents	Board(s)	Series	-
Outputs and Type	2, Non-Isolated	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Dimmable
Detailed Description	LV52206 2, Non-Isolated Output LED Driver Evaluation Board	Current - Output / Channel	-
