Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - LED Drivers > LV52205MUGEVB

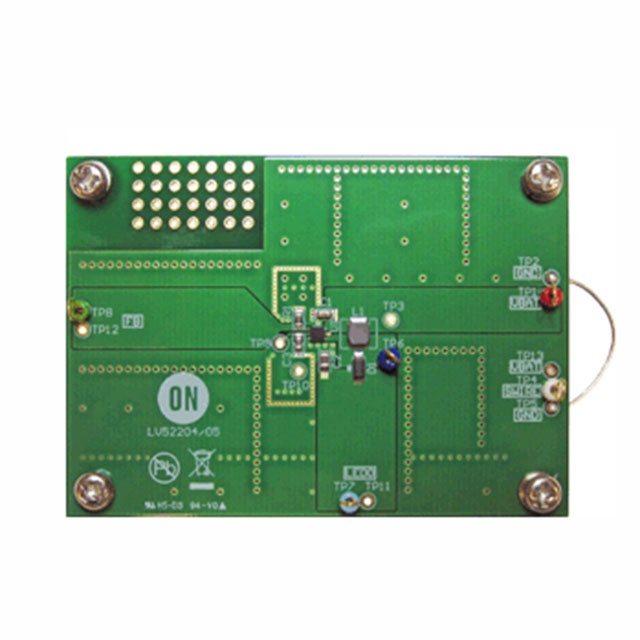

LV52205MUGEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LV52205MUGEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LV52205MUGEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD LV52205MUG
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 974 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$34.058

Product parameter
Data sheet

Product parameter

Part Number	LV52205MUGEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD LV52205MUG	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	974 pcs	Data sheet	LV52205MUGEVB Test Procedure LV52205MU
Category	Development Boards, Kits, Programmers	Voltage - Output	-
Voltage - Input	2.7 V ~ 5.5 V	Utilized IC / Part	LV52205
Supplied Contents	Board(s)	Series	-
Outputs and Type	1, Non-Isolated	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Dimmable
Detailed Description	LV52205 1, Non-Isolated Output LED Driver Evaluation Board	Current - Output / Channel	-
