Home > Products > Isolators > Optoisolators - Transistor, Photovoltaic Output > H11F3SVM

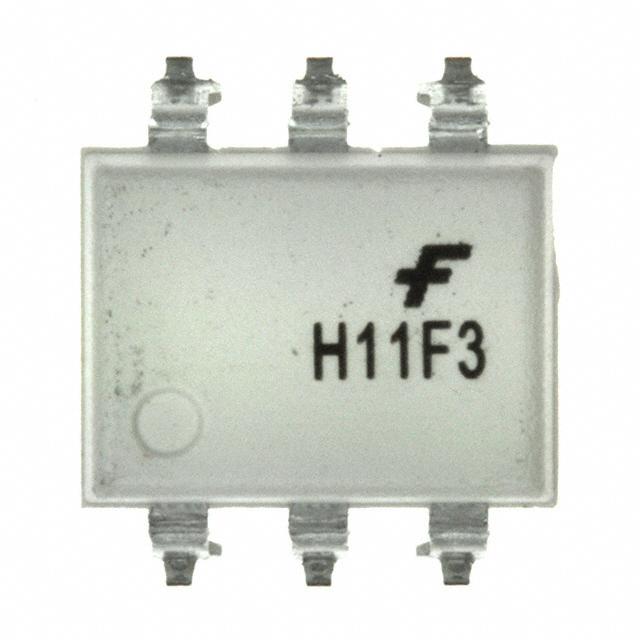

H11F3SVM

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H11F3SVM with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	H11F3SVM
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	OPTOISOLTR 7.5KV PHOTO FET 6-SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 66533 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$1.347	$1.195	$0.771	$0.617	$0.53

Product parameter
Data sheet

Product parameter

Part Number	H11F3SVM	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	OPTOISOLTR 7.5KV PHOTO FET 6-SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	66533 pcs	Data sheet	H11F1M-3M
Category	Isolators	Voltage - Output (Max)	15V
Voltage - Isolation	7500Vpk	Voltage - Forward (Vf) (Typ)	1.3V
Vce Saturation (Max)	-	Turn On / Turn Off Time (Typ)	45µs, 45µs (Max)
Supplier Device Package	6-SMD	Series	-
Rise / Fall Time (Typ)	-	Packaging	Tube
Package / Case	6-SMD, Gull Wing	Output Type	MOSFET
Operating Temperature	-40°C ~ 100°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator MOSFET Output 7500Vpk 1 Channel 6-SMD	Current Transfer Ratio (Min)	-
Current Transfer Ratio (Max)	-	Current - Output / Channel	-
Current - DC Forward (If) (Max)	60mA
