FSL336LRN

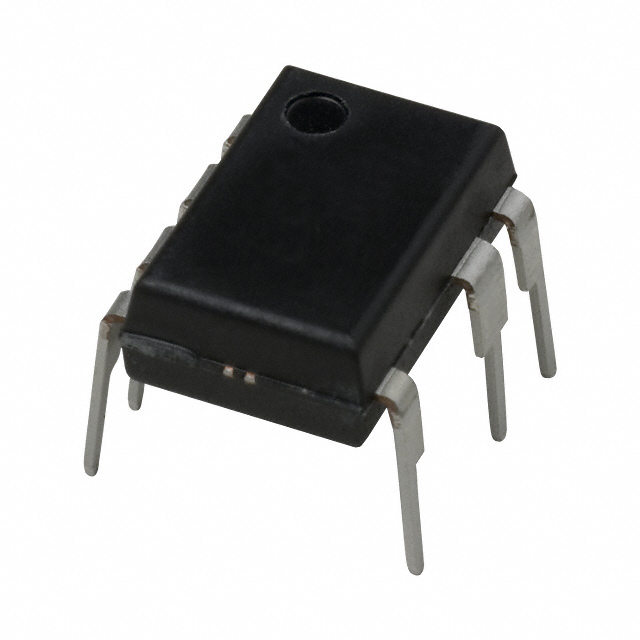

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FSL336LRN with confidence from Components-World.HK, 1 Year Warranty
Dowload FSL336LRN Details in PDFSee Product Specifications for product details.
Buy FSL336LRN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FSL336LRN |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC PWM BUCK SWITCH 1.8A 7-DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.469 | $0.418 | $0.326 | $0.269 | $0.213 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FSL336LRN | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC PWM BUCK SWITCH 1.8A 7-DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 97839 pcs | Data sheet | FSL336LRN |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 7 V ~ 26 V |
| Voltage - Start Up | 8V | Voltage - Breakdown | 650V |
| Topology | Buck, Flyback | Supplier Device Package | 7-DIP |
| Series | - | Power (Watts) | 20W |
| Packaging | Tube | Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Output Isolation | Non-Isolated | Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Yes |
| Frequency - Switching | 50kHz | Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Duty Cycle | - | Detailed Description | Converter Offline Buck, Flyback Topology 50kHz 7-DIP |
| Control Features | - |
