FSL336LRLX

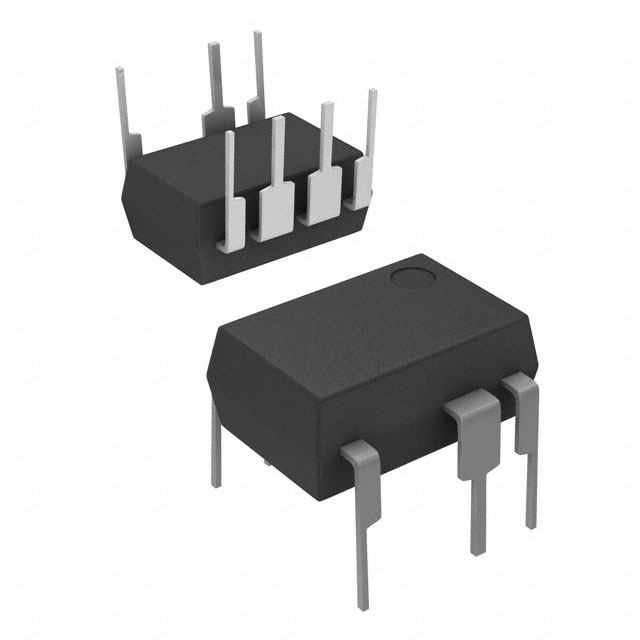

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FSL336LRLX with confidence from Components-World.HK, 1 Year Warranty
Dowload FSL336LRLX Details in PDFSee Product Specifications for product details.
Buy FSL336LRLX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FSL336LRLX |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC PWM CTLR SENSEFET BUCK 7LSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 5000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.287 | $0.268 | $0.258 | $0.248 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | FSL336LRLX | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC PWM CTLR SENSEFET BUCK 7LSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 94408 pcs | Data sheet | FSL336LRL |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 7 V ~ 26 V |
| Voltage - Start Up | 8V | Voltage - Breakdown | 650V |
| Topology | Buck, Flyback | Supplier Device Package | 7-LSOP |
| Series | - | Power (Watts) | 20W |
| Packaging | Tape & Reel (TR) | Package / Case | 8-SMD (7 Leads), Gull Wing |
| Output Isolation | Non-Isolated | Other Names | FSL336LRLXTR |
| Operating Temperature | -40°C ~ 125°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Yes | Frequency - Switching | 50kHz |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage | Duty Cycle | - |
| Detailed Description | Converter Offline Buck, Flyback Topology 50kHz 7-LSOP | Control Features | - |
