FQAF22P10

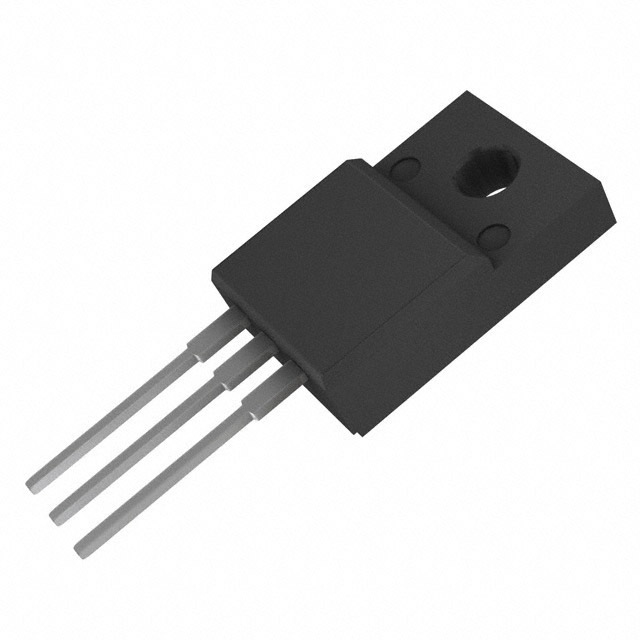

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FQAF22P10 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FQAF22P10 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FQAF22P10 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET P-CH 100V 16.6A TO-3PF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FQAF22P10 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET P-CH 100V 16.6A TO-3PF | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6025 pcs | Data sheet | FQAF22P10 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-3PF | Series | QFET® |
| Rds On (Max) @ Id, Vgs | 125 mOhm @ 8.3A, 10V | Power Dissipation (Max) | 70W (Tc) |
| Packaging | Tube | Package / Case | SC-94 |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1500pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 50nC @ 10V |
| FET Type | P-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 100V |
| Detailed Description | P-Channel 100V 16.6A (Tc) 70W (Tc) Through Hole TO-3PF | Current - Continuous Drain (Id) @ 25°C | 16.6A (Tc) |
