FGY75N60SMD

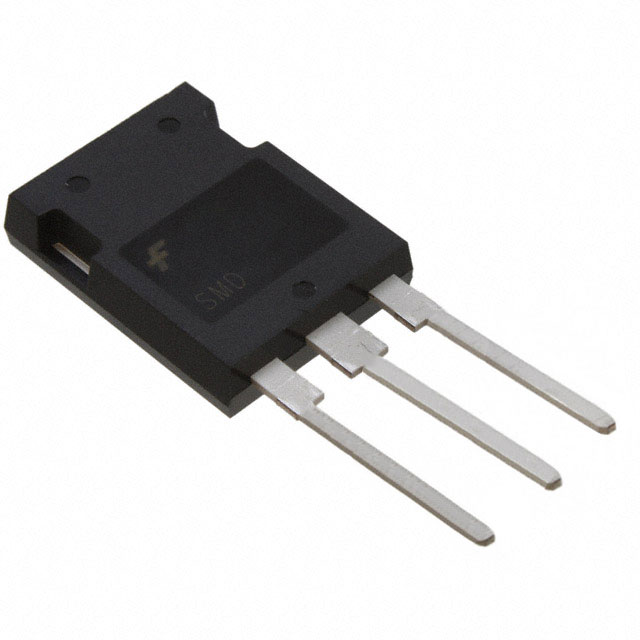

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FGY75N60SMD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FGY75N60SMD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FGY75N60SMD |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IGBT 600V 150A 750W POWER-247 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 450 pcs | 900 pcs | 1350 pcs |
|---|---|---|---|---|---|
| $2.222 | $2.007 | $1.587 | $1.447 | $1.26 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FGY75N60SMD | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IGBT 600V 150A 750W POWER-247 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30347 pcs | Data sheet | FGY75N60SMD |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 600V |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 75A | Test Condition | 400V, 75A, 3 Ohm, 15V |
| Td (on/off) @ 25°C | 24ns/136ns | Switching Energy | 2.3mJ (on), 770µJ (off) |
| Supplier Device Package | PowerTO-247-3 | Series | - |
| Reverse Recovery Time (trr) | 55ns | Power - Max | 750W |
| Packaging | Tube | Package / Case | TO-247-3 Variant |
| Other Names | FGY75N60SMD-ND FGY75N60SMDFS |
Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | Standard |
| IGBT Type | Field Stop | Gate Charge | 248nC |
| Detailed Description | IGBT Field Stop 600V 150A 750W Through Hole PowerTO-247-3 | Current - Collector Pulsed (Icm) | 225A |
| Current - Collector (Ic) (Max) | 150A |
