FGY160T65SPD-F085

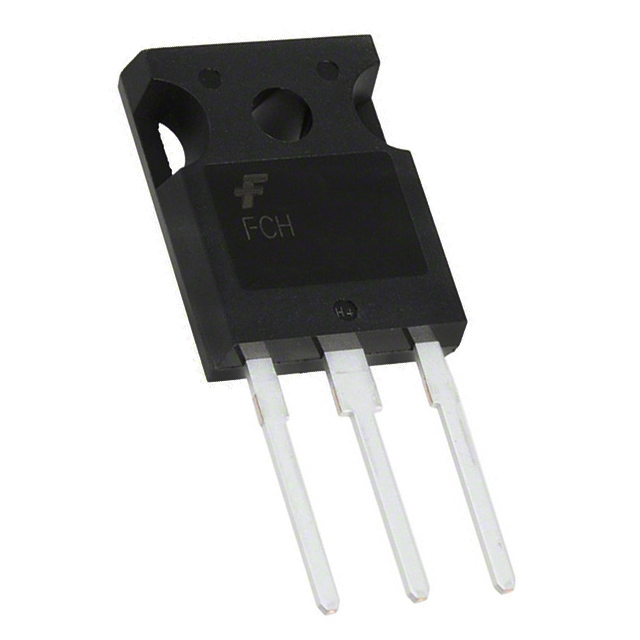

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FGY160T65SPD-F085 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FGY160T65SPD-F085 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FGY160T65SPD-F085 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | 650V FS GEN3 TRENCH IGBT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $5.567 | $5.116 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FGY160T65SPD-F085 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | 650V FS GEN3 TRENCH IGBT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7612 pcs | Data sheet | FGY160T65SPD_F085 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 650V |
| Vce(on) (Max) @ Vge, Ic | 2.05V @ 15V, 160A | Test Condition | 400V, 160A, 15V |
| Td (on/off) @ 25°C | 53ns/98ns | Switching Energy | 12.4mJ (on), 5.7mJ (off) |
| Supplier Device Package | TO-247 | Series | Automotive, AEC-Q101 |
| Reverse Recovery Time (trr) | 132ns | Power - Max | 882W |
| Packaging | Tube | Package / Case | TO-247-3 |
| Other Names | FGY160T65SPD_F085 FGY160T65SPD_F085-ND |
Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | Standard |
| IGBT Type | Trench Field Stop | Detailed Description | IGBT Trench Field Stop 650V 240A 882W Through Hole TO-247 |
| Current - Collector Pulsed (Icm) | 480A | Current - Collector (Ic) (Max) | 240A |
