FDPC8011S

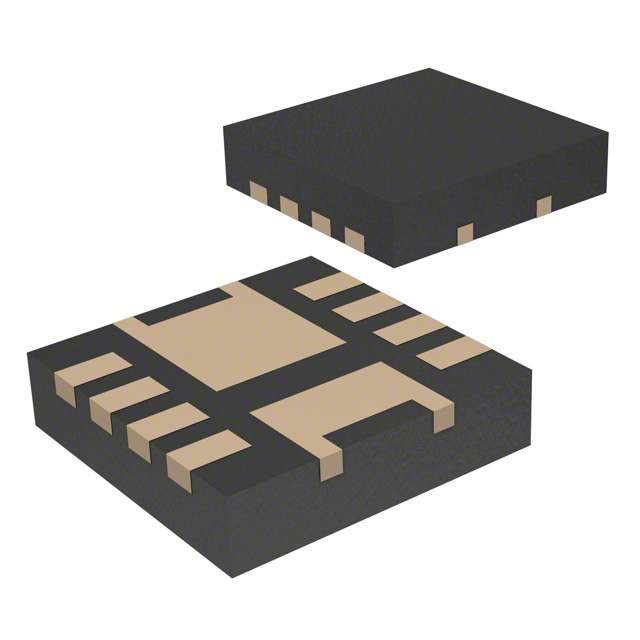

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDPC8011S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDPC8011S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDPC8011S |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET 2N-CH 25V 13A/27A 8PQFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.624 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FDPC8011S | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET 2N-CH 25V 13A/27A 8PQFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49144 pcs | Data sheet | FDPC8011S |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Supplier Device Package | Powerclip-33 | Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 6 mOhm @ 13A, 10V | Power - Max | 800mW, 900mW |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerWDFN |
| Other Names | FDPC8011SFSTR | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 39 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1240pF @ 13V | Gate Charge (Qg) (Max) @ Vgs | 19nC @ 10V |
| FET Type | 2 N-Channel (Dual) Asymmetrical | FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 25V | Detailed Description | Mosfet Array 2 N-Channel (Dual) Asymmetrical 25V 13A, 27A 800mW, 900mW Surface Mount Powerclip-33 |
| Current - Continuous Drain (Id) @ 25°C | 13A, 27A | Base Part Number | FDPC8011S |
