FDMS8090

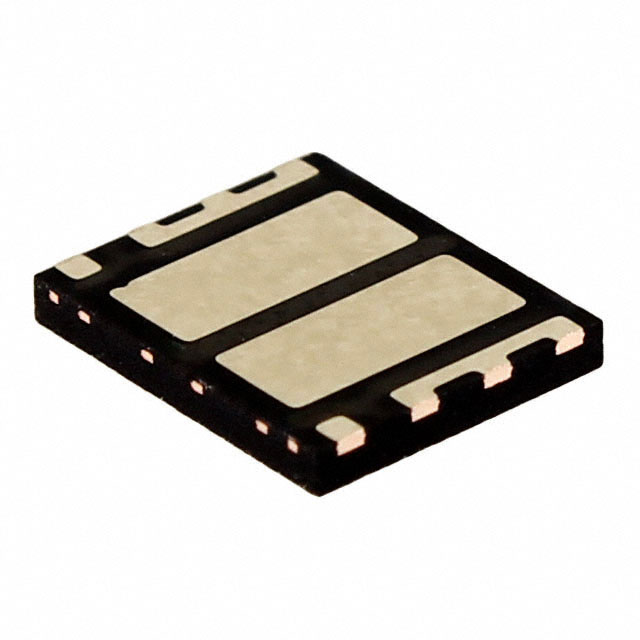

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDMS8090 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDMS8090 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDMS8090 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET 2N-CH 100V 10A PWR56 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.273 | $1.138 | $0.933 | $0.755 | $0.637 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FDMS8090 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET 2N-CH 100V 10A PWR56 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 54946 pcs | Data sheet | FDMS8090 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | 8-MLP (5x6), Power56 | Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 13 mOhm @ 10A, 10V | Power - Max | 2.2W |
| Packaging | Cut Tape (CT) | Package / Case | 8-PowerWDFN |
| Other Names | FDMS8090CT | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 24 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1800pF @ 50V | Gate Charge (Qg) (Max) @ Vgs | 27nC @ 10V |
| FET Type | 2 N-Channel (Dual) | FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 100V | Detailed Description | Mosfet Array 2 N-Channel (Dual) 100V 10A 2.2W Surface Mount 8-MLP (5x6), Power56 |
| Current - Continuous Drain (Id) @ 25°C | 10A |
