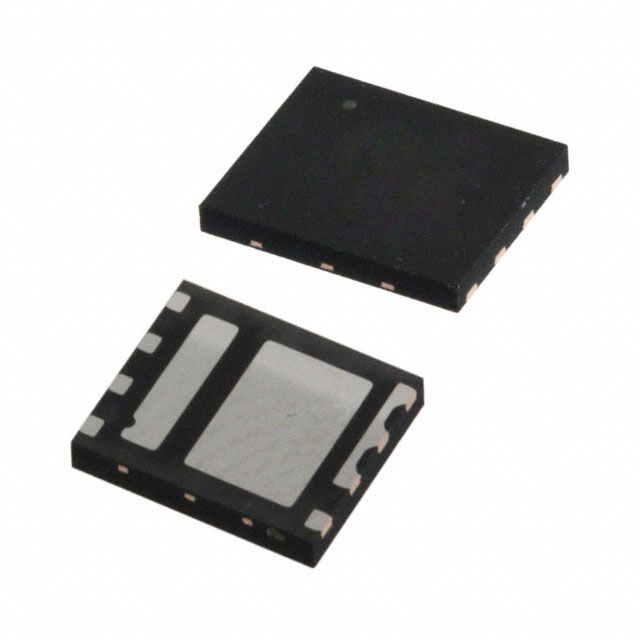

FDMS7700S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDMS7700S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDMS7700S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDMS7700S |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET 2N-CH 30V 12A/22A POWER56 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.452 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FDMS7700S | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET 2N-CH 30V 12A/22A POWER56 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74759 pcs | Data sheet | FDMS7700S |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | Power56 | Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 7.5 mOhm @ 12A, 10V | Power - Max | 1W |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerWDFN |
| Other Names | FDMS7700STR | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 22 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1750pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 28nC @ 10V |
| FET Type | 2 N-Channel (Dual) | FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | Mosfet Array 2 N-Channel (Dual) 30V 12A, 22A 1W Surface Mount Power56 |
| Current - Continuous Drain (Id) @ 25°C | 12A, 22A |
