FDMQ86530L

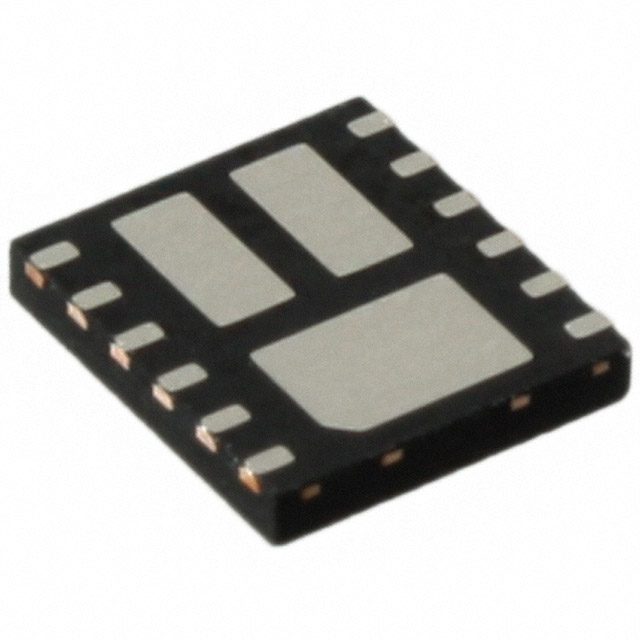

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDMQ86530L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDMQ86530L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDMQ86530L |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET 4N-CH 60V 8A MLP4.5X5 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.479 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FDMQ86530L | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET 4N-CH 60V 8A MLP4.5X5 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76852 pcs | Data sheet | FDMQ86530L |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | 12-MLP (5x4.5) | Series | GreenBridge™ PowerTrench® |
| Rds On (Max) @ Id, Vgs | 17.5 mOhm @ 8A, 10V | Power - Max | 1.9W |
| Packaging | Tape & Reel (TR) | Package / Case | 12-WDFN Exposed Pad |
| Other Names | FDMQ86530LTR | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 39 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 2295pF @ 30V | Gate Charge (Qg) (Max) @ Vgs | 33nC @ 10V |
| FET Type | 4 N-Channel (H-Bridge) | FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 60V | Detailed Description | Mosfet Array 4 N-Channel (H-Bridge) 60V 8A 1.9W Surface Mount 12-MLP (5x4.5) |
| Current - Continuous Drain (Id) @ 25°C | 8A |
