FDMQ8203

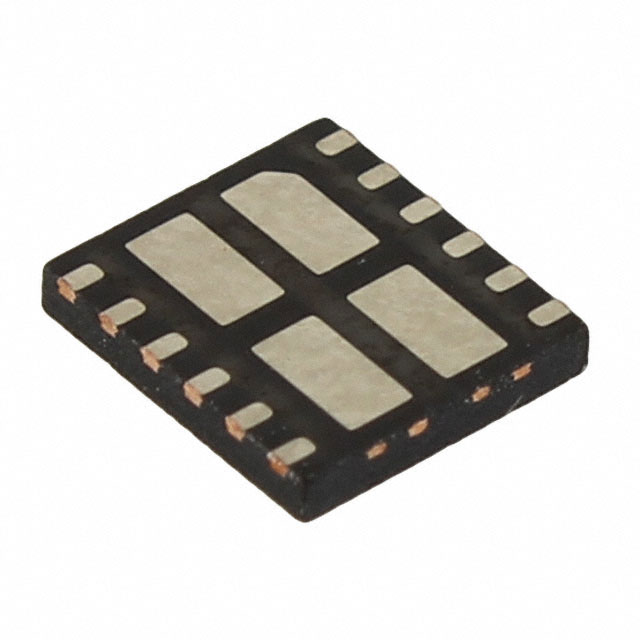

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDMQ8203 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDMQ8203 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDMQ8203 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET 2N/2P-CH 100V/80V 12-MLP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.051 | $0.943 | $0.772 | $0.658 | $0.555 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FDMQ8203 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET 2N/2P-CH 100V/80V 12-MLP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 62941 pcs | Data sheet | FDMQ8203 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | 12-MLP (5x4.5) | Series | GreenBridge™ PowerTrench® |
| Rds On (Max) @ Id, Vgs | 110 mOhm @ 3A, 10V | Power - Max | 2.5W |
| Packaging | Cut Tape (CT) | Package / Case | 12-WDFN Exposed Pad |
| Other Names | FDMQ8203CT | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 210pF @ 50V | Gate Charge (Qg) (Max) @ Vgs | 5nC @ 10V |
| FET Type | 2 N and 2 P-Channel (H-Bridge) | FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 100V, 80V | Detailed Description | Mosfet Array 2 N and 2 P-Channel (H-Bridge) 100V, 80V 3.4A, 2.6A 2.5W Surface Mount 12-MLP (5x4.5) |
| Current - Continuous Drain (Id) @ 25°C | 3.4A, 2.6A | Base Part Number | FDMQ8203 |
