FDMC86244

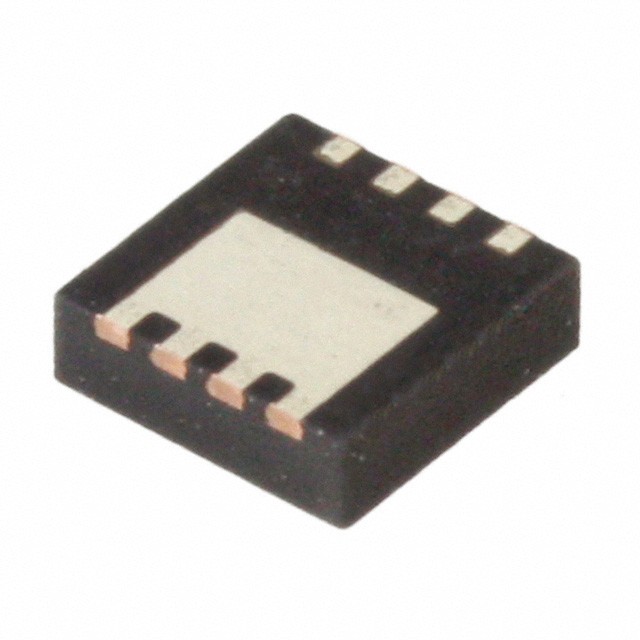

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDMC86244 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDMC86244 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDMC86244 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 150V 2.8A POWER33 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.141 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FDMC86244 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 150V 2.8A POWER33 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 160931 pcs | Data sheet | FDMC86244 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-MLP (3.3x3.3) | Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 134 mOhm @ 2.8A, 10V | Power Dissipation (Max) | 2.3W (Ta), 26W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerWDFN |
| Other Names | FDMC86244-ND FDMC86244TR |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 39 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 345pF @ 75V | Gate Charge (Qg) (Max) @ Vgs | 5.9nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | Drain to Source Voltage (Vdss) | 150V |
| Detailed Description | N-Channel 150V 2.8A (Ta), 9.4A (Tc) 2.3W (Ta), 26W (Tc) Surface Mount 8-MLP (3.3x3.3) | Current - Continuous Drain (Id) @ 25°C | 2.8A (Ta), 9.4A (Tc) |
