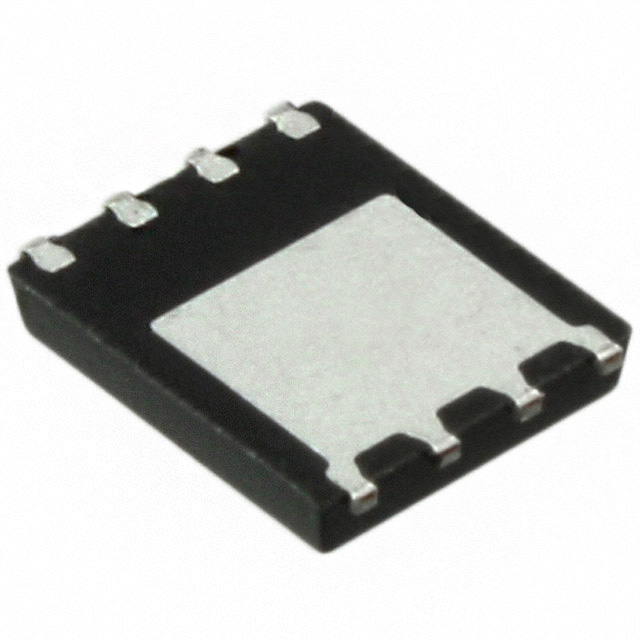

FDMC86184
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDMC86184 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDMC86184 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDMC86184 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 100V 57A 8PQFN |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.77 | $0.694 | $0.557 | $0.433 | $0.359 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FDMC86184 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 100V 57A 8PQFN | Lead Free Status / RoHS Status | |
| Quantity Available | 87884 pcs | Data sheet | FDMC86184 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 110µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-PQFN (3.3x3.3), Power33 | Series | PowerTrench® |
| Rds On (Max) @ Id, Vgs | 8.5 mOhm @ 21A, 10V | Power Dissipation (Max) | 54W (Tc) |
| Packaging | Original-Reel® | Package / Case | 8-PowerWDFN |
| Other Names | FDMC86184DKR | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 39 Weeks | Input Capacitance (Ciss) (Max) @ Vds | 2090pF @ 50V |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 6V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Drain to Source Voltage (Vdss) | 100V | Detailed Description | N-Channel 100V 57A (Tc) 54W (Tc) Surface Mount 8-PQFN (3.3x3.3), Power33 |
| Current - Continuous Drain (Id) @ 25°C | 57A (Tc) |
