ESD8504GMUTAG

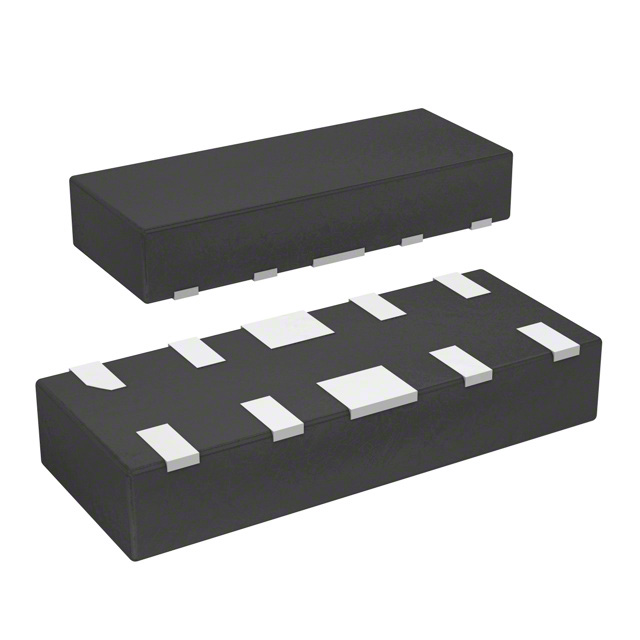

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ESD8504GMUTAG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ESD8504GMUTAG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ESD8504GMUTAG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | TVS DIODE 3V 7V 10UDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | |
|---|---|---|---|---|---|
| $0.043 | $0.04 | $0.038 | $0.035 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ESD8504GMUTAG | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | TVS DIODE 3V 7V 10UDFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 681871 pcs | Data sheet | ESD8504G |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 3V (Max) |
| Voltage - Clamping (Max) @ Ipp | 7V | Voltage - Breakdown (Min) | 4V |
| Unidirectional Channels | 4 | Type | Zener |
| Supplier Device Package | 10-UDFN (2.5x1) | Series | - |
| Power Line Protection | No | Power - Peak Pulse | - |
| Packaging | Tape & Reel (TR) | Package / Case | 10-UFDFN |
| Other Names | ESD8504GMUTAG-ND ESD8504GMUTAGOSTR |
Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Current - Peak Pulse (10/1000µs) | 16A (100ns) | Capacitance @ Frequency | 0.39pF @ 1MHz |
| Applications | General Purpose |
