ESD8501V5MUT5G

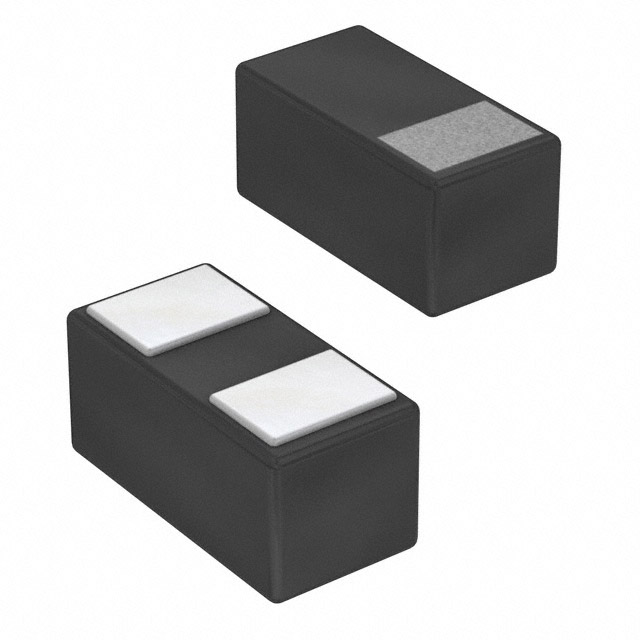

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ESD8501V5MUT5G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ESD8501V5MUT5G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ESD8501V5MUT5G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | DIODE TVS 5V UDFN-2 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 8000 pcs | 16000 pcs | 24000 pcs | ||
|---|---|---|---|---|---|
| $0.052 | $0.048 | $0.048 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ESD8501V5MUT5G | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | DIODE TVS 5V UDFN-2 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 496589 pcs | Data sheet | ESD8501V5 |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Clamping (Max) @ Ipp | 11.5V | Voltage - Breakdown (Min) | 6V |
| Unidirectional Channels | 1 | Type | Zener |
| Supplier Device Package | 2-UDFN (1.6x1) | Series | - |
| Power Line Protection | No | Power - Peak Pulse | - |
| Packaging | Tape & Reel (TR) | Package / Case | 2-UDFN |
| Other Names | ESD8501V5MUT5G-ND ESD8501V5MUT5GOSTR |
Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Current - Peak Pulse (10/1000µs) | 70A (8/20µs) | Capacitance @ Frequency | 16pF @ 0V, 1MHz (Max) |
| Applications | General Purpose |
