Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - Audio Amplifiers > SSM2306-EVALZ

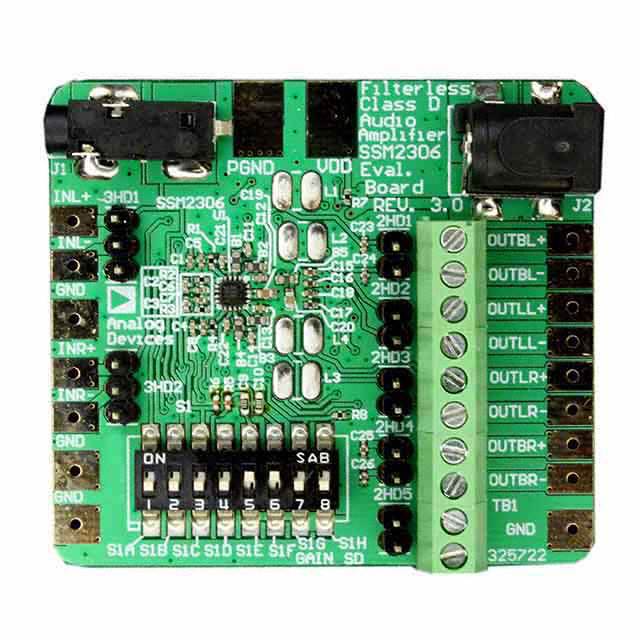

SSM2306-EVALZ

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSM2306-EVALZ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SSM2306-EVALZ
Manufacturer	ADI (Analog Devices, Inc.)
Description	BOARD EVAL FOR SSM2306
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5658 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	SSM2306-EVALZ	Manufacturer	ADI (Analog Devices, Inc.)
Description	BOARD EVAL FOR SSM2306	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5658 pcs	Data sheet	SSM2306 EVAL-SSM2306
Category	Development Boards, Kits, Programmers	Voltage - Supply	2.5 V ~ 5 V
Utilized IC / Part	SSM2306	Supplied Contents	Board(s)
Series	-	Output Type	2-Channel (Stereo)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Max Output Power x Channels @ Load	2.4W x 2 @ 4 Ohm
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	SSM2306 - 2-Channel (Stereo) Output Class D Audio Amplifier Evaluation Board
Board Type	Fully Populated	Base Part Number	SSM2306
Amplifier Type	Class D
