Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - Audio Amplifiers > SSM2304Z-EVAL

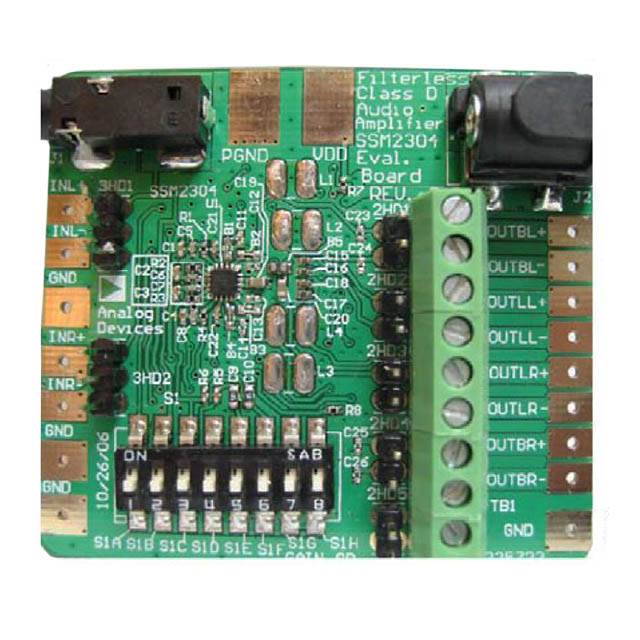

SSM2304Z-EVAL

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSM2304Z-EVAL with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SSM2304Z-EVAL
Manufacturer	ADI (Analog Devices, Inc.)
Description	EVAL BOARD FOR SSM2304Z
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4993 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	SSM2304Z-EVAL	Manufacturer	ADI (Analog Devices, Inc.)
Description	EVAL BOARD FOR SSM2304Z	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4993 pcs	Data sheet	SSM2304 EVAL-SSM2304
Category	Development Boards, Kits, Programmers	Voltage - Supply	2.5 V ~ 5 V
Utilized IC / Part	SSM2304	Supplied Contents	Board(s)
Series	-	Output Type	2-Channel (Stereo)
Other Names	Q3279966	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Max Output Power x Channels @ Load	2.4W x 2 @ 4 Ohm	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	SSM2304 - 2-Channel (Stereo) Output Class D Audio Amplifier Evaluation Board	Board Type	Fully Populated
Base Part Number	SSM2304	Amplifier Type	Class D
