DC1825A

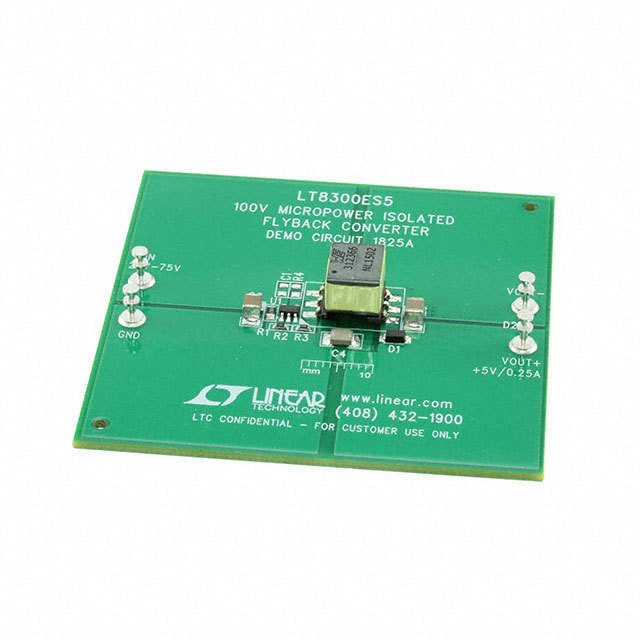

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DC1825A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DC1825A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DC1825A |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | EVAL BOARD FLYBK CONV LT8300 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $35.861 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DC1825A | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | EVAL BOARD FLYBK CONV LT8300 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 954 pcs | Data sheet | LT8300 DatasheetLTspice FlyerLTspice IV Getting Started GuideDC1825A Demo Manual |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 5V |
| Voltage - Input | 22 V ~ 75 V | Utilized IC / Part | LT8300 |
| Supplied Contents | Board(s) | Series | - |
| Regulator Topology | Flyback | Outputs and Type | 1, Isolated |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Main Purpose | DC/DC, Step Down | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Switching | 330kHz | Detailed Description | LT8300 - DC/DC, Step Down 1, Isolated Outputs Evaluation Board |
| Current - Output | 250mA | Board Type | Fully Populated |
| Base Part Number | LT8300 |
