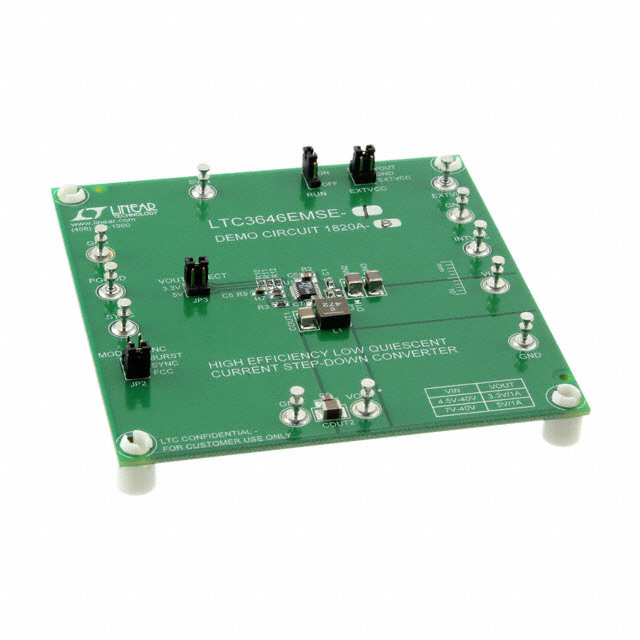

DC1820A-B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DC1820A-B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DC1820A-B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DC1820A-B |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | BOARD EVAL FOR LTC3646-1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $55.504 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DC1820A-B | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | BOARD EVAL FOR LTC3646-1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 636 pcs | Data sheet | LTC3646(-1)LTspice FlyerLTspice IV Getting Started GuideDC1820A-(A,B) Demo Manual |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 3.3V or 5V |
| Voltage - Input | 4 V ~ 40 V | Utilized IC / Part | LTC3646-1 |
| Supplied Contents | Board(s) | Series | - |
| Regulator Topology | Buck | Outputs and Type | 1, Non-Isolated |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Main Purpose | DC/DC, Step Down | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Switching | 1.5MHz | Detailed Description | LTC3646-1 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
| Current - Output | 1A | Board Type | Fully Populated |
| Base Part Number | LTC3646 |
