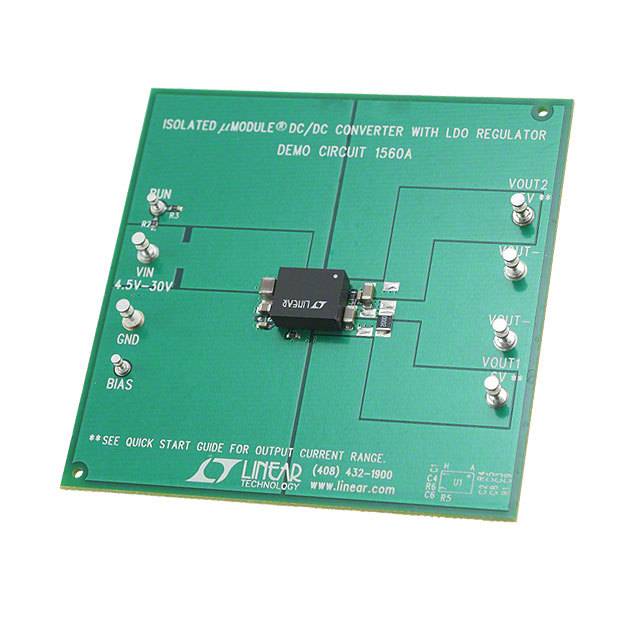

DC1560A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DC1560A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DC1560A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DC1560A |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | BOARD EVAL FOR LTM8048 |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Reference Price (In US Dollars) | 1 pcs | 100 pcs | |||
|---|---|---|---|---|---|
| $23.393 | $23.05 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DC1560A | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | BOARD EVAL FOR LTM8048 | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Quantity Available | 1501 pcs | Data sheet | LTspice FlyerLTspice IV Getting Started GuideLTM8048DC1560A Demo Manual |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 5V, 6V |
| Voltage - Input | 4.5 V ~ 30 V | Utilized IC / Part | LTM8048 |
| Supplied Contents | Board(s) | Series | µModule® |
| Regulator Topology | Flyback | Outputs and Type | 2, Isolated |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Main Purpose | DC/DC, Step Down with LDO | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Frequency - Switching | - | Detailed Description | LTM8048 µModule® DC/DC, Step Down with LDO 2, Isolated Outputs Evaluation Board |
| Current - Output | 300mA | Board Type | Fully Populated |
| Base Part Number | LTM8048 |
