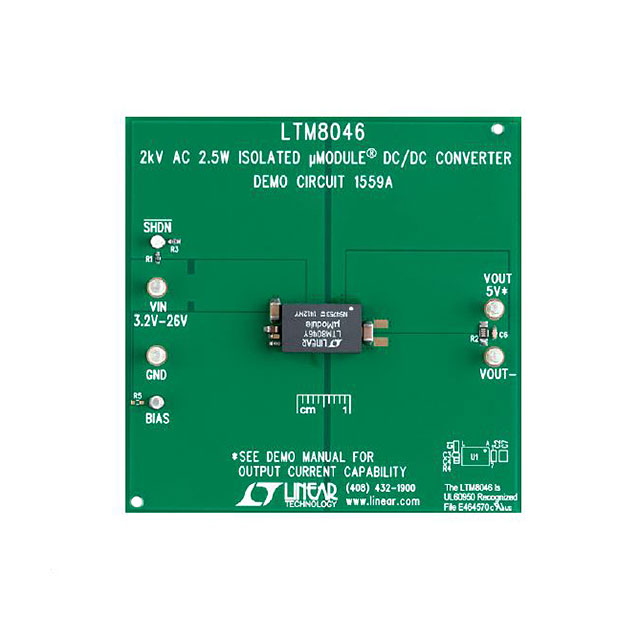

DC1559A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DC1559A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DC1559A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DC1559A |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | DEMOBOARD FOR THE LTM8046 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 100 pcs | |||
|---|---|---|---|---|---|
| $23.498 | $23.153 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DC1559A | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | DEMOBOARD FOR THE LTM8046 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1363 pcs | Data sheet | LTspice FlyerLTspice IV Getting Started GuideLTM8046 DatasheetDC1559A Demo Manual |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 5V |
| Voltage - Input | 3.2 V ~ 26 V | Utilized IC / Part | LTM8046 |
| Supplied Contents | Board(s) | Series | µModule® |
| Regulator Topology | - | Outputs and Type | 1, Isolated |
| Other Names | Q9534563 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Main Purpose | DC/DC Converter |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Switching | - |
| Detailed Description | LTM8046 µModule® DC/DC Converter 1, Isolated Outputs Evaluation Board | Current - Output | 550mA |
| Board Type | Fully Populated | Base Part Number | LTM8046 |
