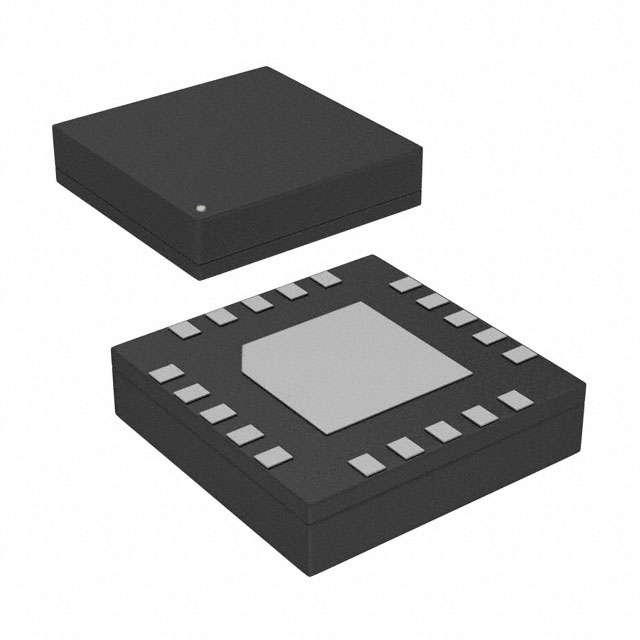

ADRF5020BCCZN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADRF5020BCCZN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ADRF5020BCCZN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADRF5020BCCZN |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | HIGH ISOLATION SPDT, 30GHZ, FAST |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $33.937 | $31.996 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ADRF5020BCCZN | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | HIGH ISOLATION SPDT, 30GHZ, FAST | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1180 pcs | Data sheet | ADRF5020 |
| Category | RF/IF and RFID | Voltage - Supply | 5.5V |
| Topology | Absorptive | Test Frequency | 20GHz |
| Supplier Device Package | 20-LGA (3x3) | Series | - |
| RF Type | VSAT | Packaging | Strip |
| Package / Case | 20-WFLGA Exposed Pad | P1dB | 28dBm |
| Operating Temperature | -40°C ~ 85°C | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Isolation | 65dB | Insertion Loss | 2dB |
| Impedance | 50 Ohm | IIP3 | 52dBm |
| Frequency Range | 100MHz ~ 30GHz | Features | - |
| Detailed Description | RF Switch IC VSAT SPDT 30GHz 50 Ohm 20-LGA (3x3) | Circuit | SPDT |
| Base Part Number | ADRF5020 |
