ADG854BCPZ-REEL

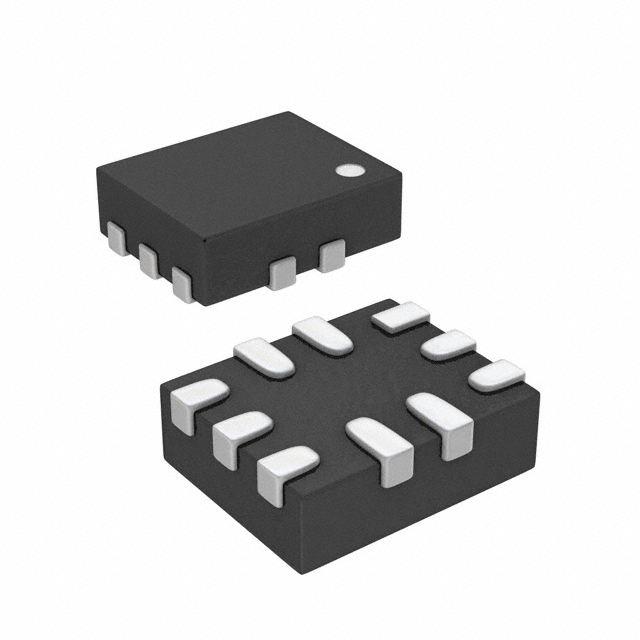

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADG854BCPZ-REEL with confidence from Components-World.HK, 1 Year Warranty
Dowload ADG854BCPZ-REEL Details in PDFSee Product Specifications for product details.
Buy ADG854BCPZ-REEL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADG854BCPZ-REEL |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC SWITCH DUAL SPDT 10LFCSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ADG854BCPZ-REEL | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC SWITCH DUAL SPDT 10LFCSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5681 pcs | Data sheet | ADG854 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 1.8 V ~ 5.5 V |
| Voltage - Supply, Dual (V±) | - | Switch Time (Ton, Toff) (Max) | 23ns, 8.5ns |
| Switch Circuit | SPDT | Supplier Device Package | 10-LFCSP-UQ (1.6x1.3) |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 10-UFQFN, CSP | Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 850 mOhm | Number of Circuits | 2 |
| Multiplexer/Demultiplexer Circuit | 2:1 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | 2 Circuit IC Switch 2:1 850 mOhm 10-LFCSP-UQ (1.6x1.3) |
| Current - Leakage (IS(off)) (Max) | 10pA (Typ) | Crosstalk | -85dB @ 100kHz |
| Charge Injection | 30pC | Channel-to-Channel Matching (ΔRon) | 20 mOhm |
| Channel Capacitance (CS(off), CD(off)) | 19.5pF | Base Part Number | ADG854 |
| -3db Bandwidth | 100MHz |
