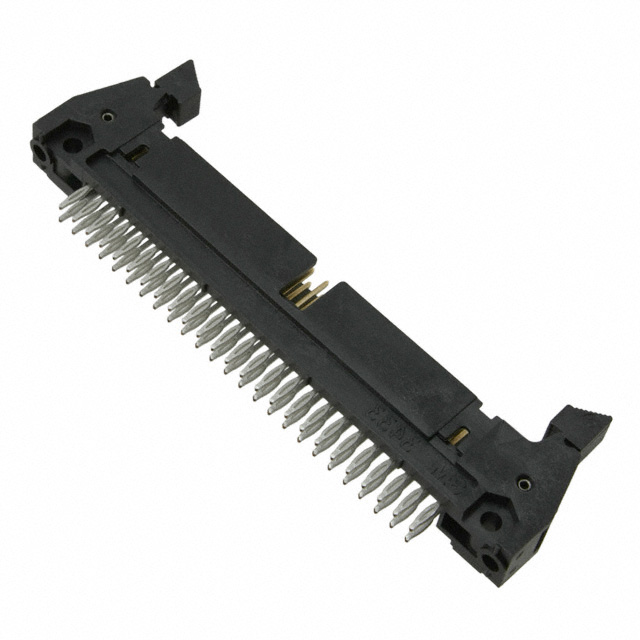

N3433-620T02RB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy N3433-620T02RB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy N3433-620T02RB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | N3433-620T02RB |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 50PS STR SHORT LATCH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.647 | $5.243 | $4.705 | $4.571 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.033 | $3.764 | $3.684 | $3.495 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | N3433-620T02RB | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 50PS STR SHORT LATCH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10798 pcs | Data sheet | 3000 Series Four-Wall Header Compliant PinInterconnect Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit, Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | 3000 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.715" (18.16mm) |
| Other Names | 0-00-51111-65980-9 05111165980 3433-620T02RB 3433-620T02RB-ND 3M156847 5111165980 51111659809 7010415945 80000902561 N3433-620T02RB-ND N3433620T02RB |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 50 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Insulation Height | 0.680" (17.27mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Mounting Flange |
| Fastening Type | Latch Lock/Eject Hooks, Short | Detailed Description | Connector Header Through Hole 50 position 0.100" (2.54mm) |
| Current Rating | 1.75A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.175" (4.45mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 300.0µin (7.62µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
