N3433-6003RB

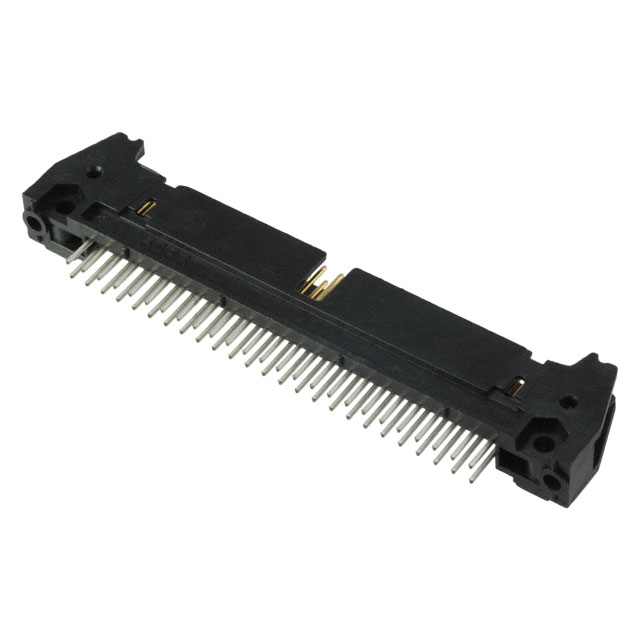

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy N3433-6003RB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy N3433-6003RB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | N3433-6003RB |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 50POS STR NO LATC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 300 pcs | ||||
|---|---|---|---|---|---|
| $1.469 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | N3433-6003RB | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 50POS STR NO LATC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20912 pcs | Data sheet | Interconnect Catalog3000 Series, Four-Wall Header Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | 3000 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.695" (17.65mm) |
| Other Names | 00051111652381 05111165238 5111165238 51111652381 70010000308 7010313566 N34336003RB |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 50 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Insulation Height | 0.680" (17.27mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Mounting Flange |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 50 position 0.100" (2.54mm) |
| Current Rating | 1.75A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.155" (3.94mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
