Home > Products > Connectors, Interconnects > Backplane Connectors - Hard Metric, Standard > CP2-HB095-GA4-G30

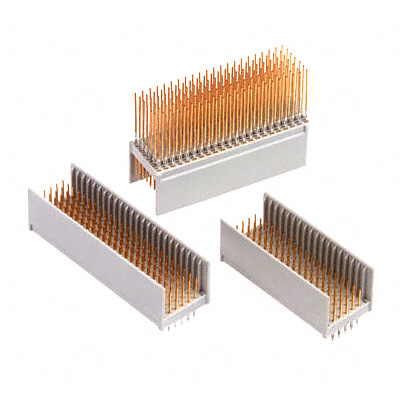

CP2-HB095-GA4-G30

CP2-HB095-GA4-G30

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CP2-HB095-GA4-G30 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CP2-HB095-GA4-G30
Manufacturer	3M
Description	CONN HEADER TYPE-B 95POS GOLD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5790 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	CP2-HB095-GA4-G30	Manufacturer	3M
Description	CONN HEADER TYPE-B 95POS GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5790 pcs	Data sheet	CP2 Press-Fit Header Type B
Category	Connectors, Interconnects	Voltage Rating	-
Termination	Press-Fit	Series	MetPak™ CP2
Pitch	0.079" (2.00mm)	Packaging	Bulk
Other Names	04801146422 15020721302	Operating Temperature	-40°C ~ 85°C
Number of Rows	5 + 2	Number of Positions Loaded	All
Number of Positions	133 (95 + 38 Ground)	Mounting Type	Through Hole
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Detailed Description	133 (95 + 38 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Connector Usage	CompactPCI Hot Swap
Connector Type	Header, Male Pins	Connector Style	B 19
