951104-8622-AR

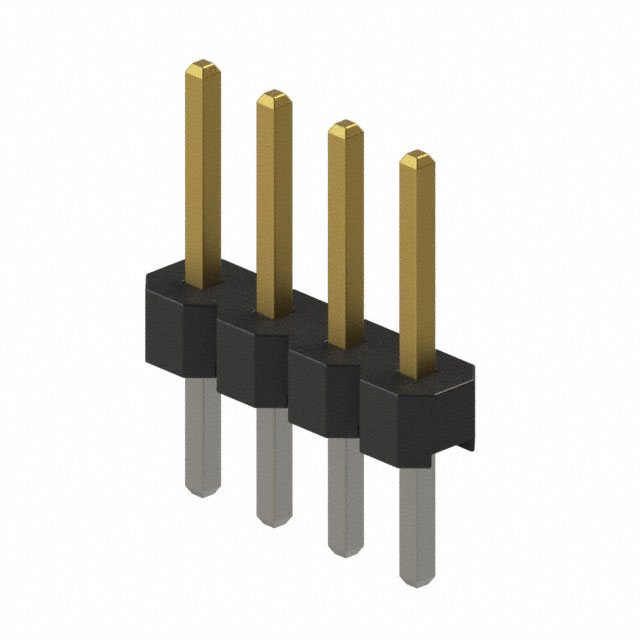

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 951104-8622-AR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 951104-8622-AR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 951104-8622-AR |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 4POS 2MM VERT T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.235 | $0.211 | $0.174 | $0.138 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.118 | $0.108 | $0.104 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 951104-8622-AR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 4POS 2MM VERT T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 198522 pcs | Data sheet | 951zzz-zz22-AR DrawingInterconnect Catalog951yyy-xx22-AR Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 951 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | 0.343" (8.70mm) |
| Other Names | 3M156413-04 3M9323 3M9323-ND 5111990014 51119900149 70-2003-0300-9 70200303009 9511048622AR DE500000034 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.060" (1.52mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 4 position 0.079" (2.00mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.110" (2.79mm) |
| Contact Length - Mating | 0.173" (4.40mm) | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
