951103-7722-AR

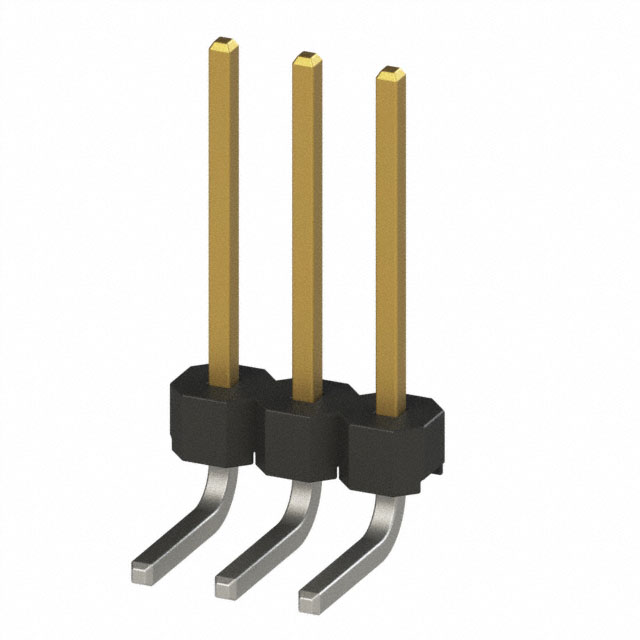

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 951103-7722-AR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 951103-7722-AR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 951103-7722-AR |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 3POS 2MM R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.346 | $0.31 | $0.255 | $0.202 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.173 | $0.158 | $0.152 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 951103-7722-AR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 3POS 2MM R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 153633 pcs | Data sheet | 951zzz-zz22-AR DrawingInterconnect Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | 951 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 0 00 51111 06225 8 3M156873-03 951103-7722-AR-ND DE500001800 S0 00 51111 06225 8 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.079" (2.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.079" (2.00mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.110" (2.79mm) |
| Contact Length - Mating | 0.305" (7.75mm) | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
