7816-0006PR

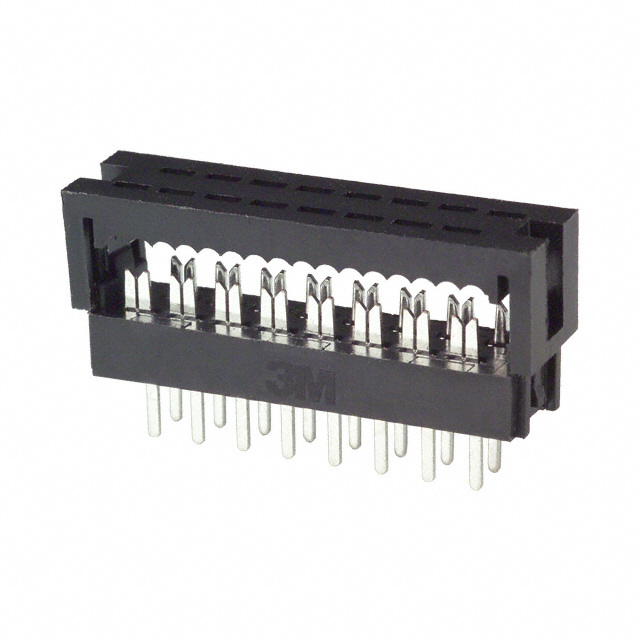

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7816-0006PR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 7816-0006PR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 7816-0006PR |
|---|---|
| Manufacturer | 3M |
| Description | CONN 16POS .1X.1 IDC RIBBON PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 7816-0006PR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN 16POS .1X.1 IDC RIBBON PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4186 pcs | Data sheet | 78xx Series |
| Category | Connectors, Interconnects | Wire Gauge | 26 AWG, Stranded; 28 AWG, Solid or Stranded; 30 AWG, Solid |
| Series | 78XX | Row Spacing | 0.100" (2.54mm) |
| Packaging | Tray | Other Names | 4547452420032 54745242003 7816-0006-PR 78160006PR JE150334660 MDM16H |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Feed Through | Detailed Description | 16 Position Ribbon Cable, DIP Header Connector Gray IDC 26 AWG, Stranded; 28 AWG, Solid or Stranded; 30 AWG, Solid Through Hole |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Ribbon Cable, DIP Header | Color | Gray |
| Cable Termination | IDC | Cable Pitch | 0.050" (1.27mm) |
| Board-Side Pitch | 0.100" (2.54mm) |
