3N304-D000-S08 BF

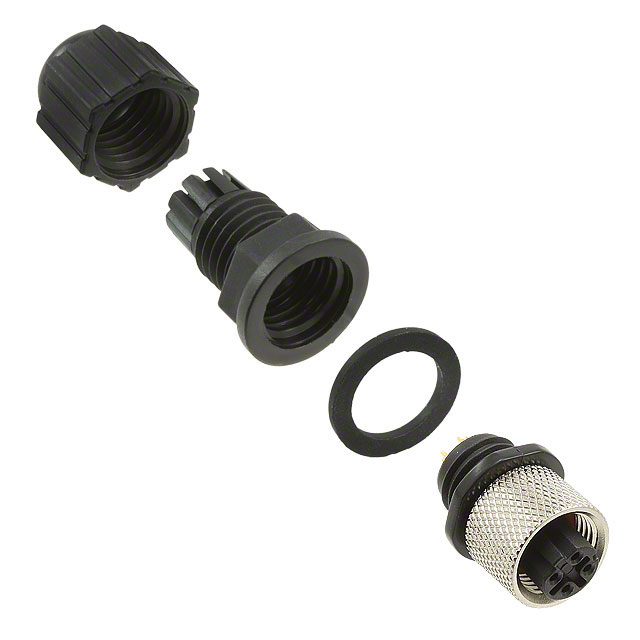

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3N304-D000-S08 BF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3N304-D000-S08 BF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3N304-D000-S08 BF |
|---|---|
| Manufacturer | 3M |
| Description | CONN RCPT FMALE 4POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.622 | $5.111 | $4.984 | $4.60 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.345 | $3.961 | $3.706 | $3.399 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3N304-D000-S08 BF | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN RCPT FMALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9490 pcs | Data sheet | 3N304-x000-S08BF Prod Spec3N304-D000-S08BF Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VDC |
| Termination | Solder Cup | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | M12-4 |
| Shell Material | Metal | Shell Finish | - |
| Series | 3N3 | Packaging | Bulk |
| Other Names | 3M12136 3N304D000S08BF 54548623879111 54862387911 7100001291 JE150436218 |
Orientation | D |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 4 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Thermoplastic | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Features | Backshell, Coupling Nut | Fastening Type | Threaded |
| Detailed Description | 4 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold | Current Rating | 4A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
| Color | Silver | Cable Opening | - |
| Backshell Material, Plating | Thermoplastic | Applications | Industrial |
