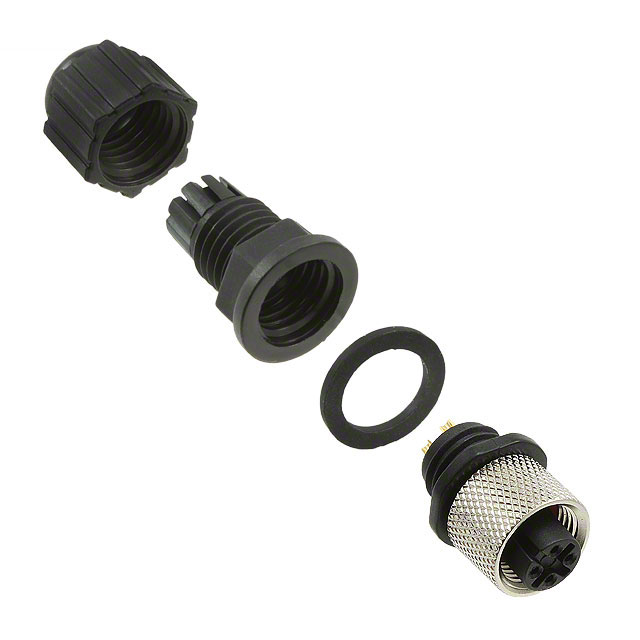

3N304-A000-S08 BF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3N304-A000-S08 BF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3N304-A000-S08 BF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3N304-A000-S08 BF |
|---|---|
| Manufacturer | 3M |
| Description | CONN RCPT FMALE 4POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.439 | $4.946 | $4.822 | $4.451 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.204 | $3.833 | $3.586 | $3.289 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3N304-A000-S08 BF | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN RCPT FMALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11507 pcs | Data sheet | 3N304-A000-S08BF Drawing3N304-x000-S08BF Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | 250VDC |
| Termination | Solder Cup | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | M12-4 |
| Shell Material | Metal | Shell Finish | - |
| Series | 3N3 | Packaging | Bulk |
| Other Names | 3M12135 3N304A000S08BF 54548623883620 54862388362 7100001290 JE150437158 |
Orientation | A |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 4 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Thermoplastic | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Features | Backshell, Coupling Nut | Fastening Type | Threaded |
| Detailed Description | 4 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold | Current Rating | 4A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
| Color | Silver | Cable Opening | - |
| Backshell Material, Plating | Thermoplastic | Applications | Industrial |
