38204-52S3-000PL

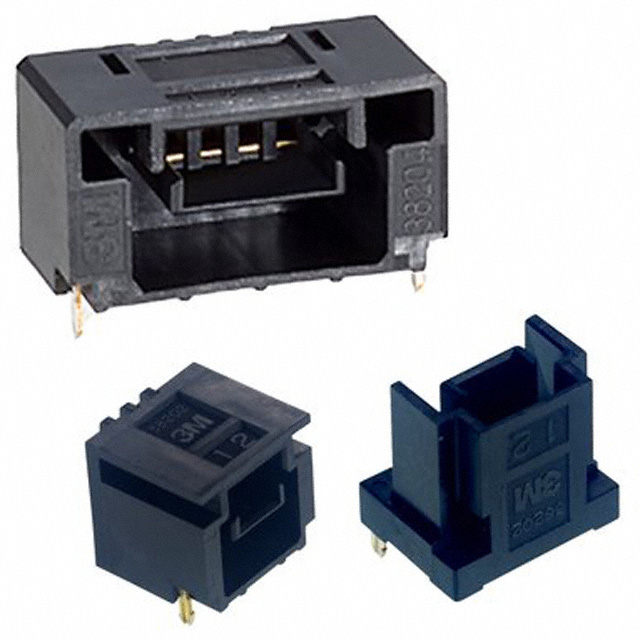

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 38204-52S3-000PL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 38204-52S3-000PL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 38204-52S3-000PL |
|---|---|
| Manufacturer | 3M |
| Description | CONN BOARDMOUNT .100 RT ANG BLK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $1.256 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 38204-52S3-000PL | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN BOARDMOUNT .100 RT ANG BLK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24550 pcs | Data sheet | 382 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 160V |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | 382 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | 04547452450374 7000007610 JE150338885 |
Operating Temperature | -20°C ~ 70°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.512" (13.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Latch Holder | Detailed Description | 4 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
| Current Rating | 5A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.100" (2.54mm) | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Industrial, Lighting |
