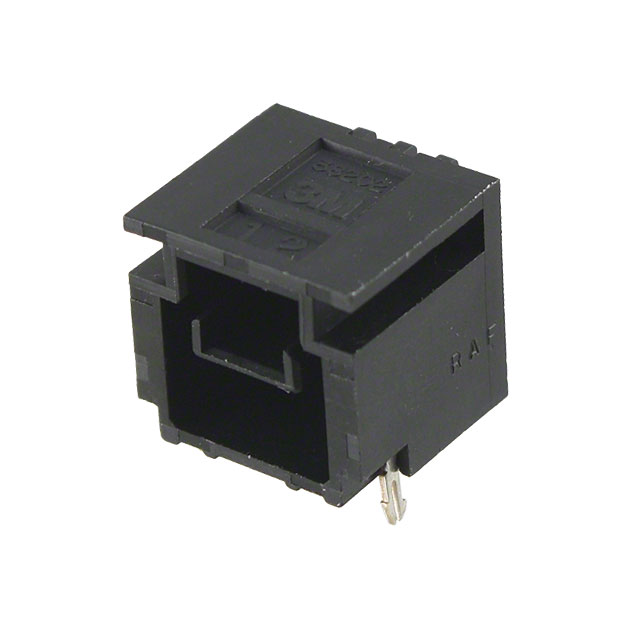

38202-52S3-000 PL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 38202-52S3-000 PL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 38202-52S3-000 PL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 38202-52S3-000 PL |
|---|---|
| Manufacturer | 3M |
| Description | 2 POS LINK BOARD MOUNT RA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.788 | $1.717 | $1.431 | $1.216 | $1.037 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 38202-52S3-000 PL | Manufacturer | 3M |
|---|---|---|---|
| Description | 2 POS LINK BOARD MOUNT RA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36926 pcs | Data sheet | 382 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 160V |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | 382 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 3820252S3000PL 3M10680 5 45 48623 56275 4 5 48623 5627 5 7010402355 JE150419826 |
Operating Temperature | -20°C ~ 70°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.512" (13.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Latch Holder | Detailed Description | 2 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
| Current Rating | 5A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.100" (2.54mm) | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Industrial, Lighting |
