| Part Number | 3428-6303 |
|---|---|
| Manufacturer | 3M |

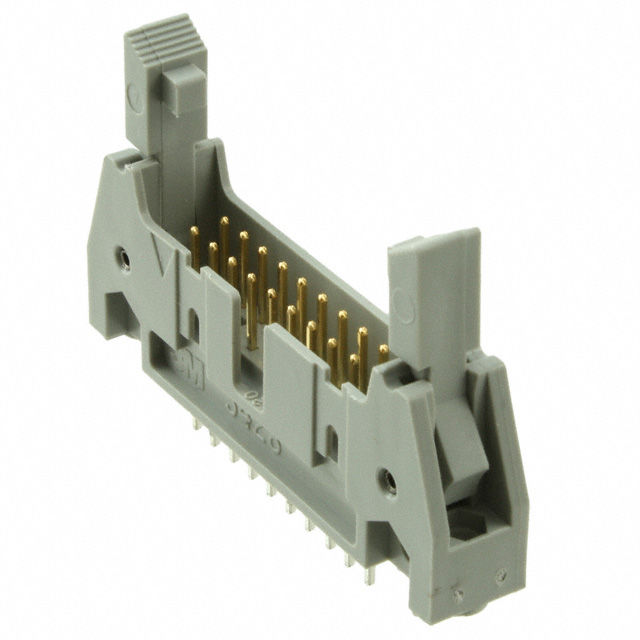

| Description | CONN HEADER 20POS STR LONG LATCH |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.742 | $1.673 | $1.394 | $1.185 | $1.011 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 3428-6303 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 20POS STR LONG LATCH | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 36572 pcs | Data sheet | Interconnect Catalog3000 Series, Four-Wall Header Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | 3000 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.695" (17.65mm) |
| Other Names | 00054007327189 00076308635152 05113862119 05400732718 07630863515 3428-6303-ND 3428-6603 3428-6603-ND 34286303 34286603 3M11945 5113862119 51138621193 5400732718 54007327189 7010397498 80001414731 80610097067 80610473847 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Insulation Height | 0.680" (17.27mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Mounting Flange |
| Fastening Type | Latch Lock/Eject Hooks, Long | Detailed Description | Connector Header Through Hole 20 position 0.100" (2.54mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.155" (3.94mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
