3428-6302
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3428-6302 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3428-6302 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3428-6302 |
|---|---|
| Manufacturer | 3M |

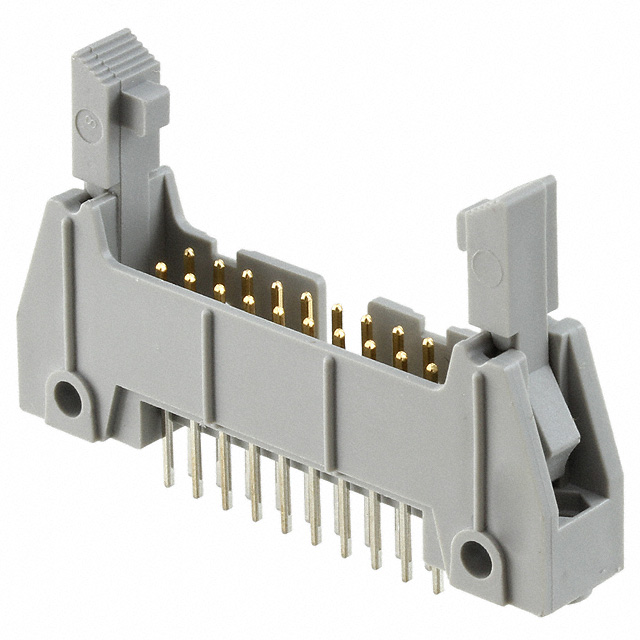

| Description | CONN HEADER 20POS STR LONG LATCH |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 300 pcs | 600 pcs | 1200 pcs |
|---|---|---|---|---|---|
| $1.599 | $1.535 | $1.12 | $1.088 | $0.928 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 3428-6302 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 20POS STR LONG LATCH | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 35946 pcs | Data sheet | Interconnect Catalog3000 Series, Four-Wall Header Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | 3000 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.652" (16.56mm) |
| Other Names | 00076308635145 05113861631 05400732722 07630863514 3428-6302-ND 3428-6602 3428-6602-ND 34286302 34286602 3M15471 3M15472 3M15472-ND 5113861631 51138616311 5400732722 54007327226 7010349327 80001414723 80610097109 80610469456 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Insulation Height | 0.680" (17.27mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Mounting Flange |
| Fastening Type | Latch Lock/Eject Hooks, Long | Detailed Description | Connector Header Through Hole 20 position 0.100" (2.54mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.112" (2.84mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
