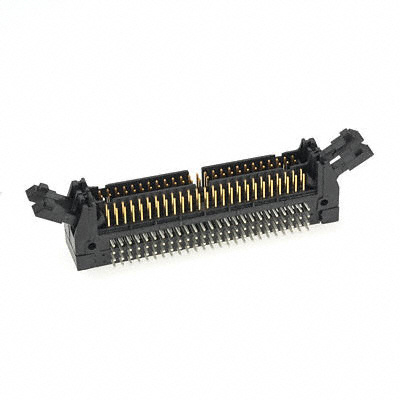

3372-D302
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3372-D302 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3372-D302 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3372-D302 |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER STKD 60POS R/A LO |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3372-D302 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER STKD 60POS R/A LO | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4738 pcs | Data sheet | Interconnect Catalog(N)3yyy-Dx02zz 3000 Series |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 3 Wall | Series | 3000 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 00076308707958 05400784299 07630870795 3372D302 5400784299 54007842996 80001417536 80130064480 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 60, 60 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled | Insulation Height | 0.660" (16.76mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot, Mounting Flange | Fastening Type | Latch Lock/Eject Hooks, Long |
| Detailed Description | Connector Header Through Hole, Right Angle 60, 60 position 0.100" (2.54mm) | Current Rating | 1.75A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.112" (2.84mm) |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold | Connector Type | Header, Stackable (2) |
| Applications | - |
