3372-6305

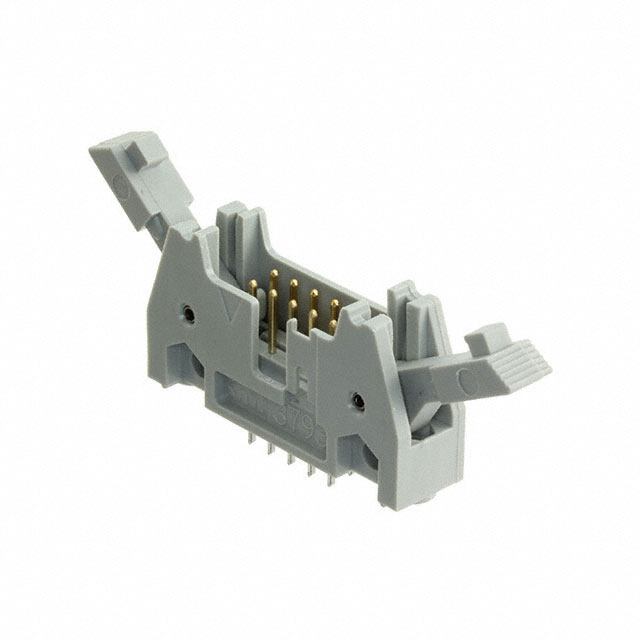

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3372-6305 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3372-6305 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3372-6305 |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 60POS STR LONG LA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $5.439 | $4.946 | $4.204 | $3.586 | $3.289 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 3372-6305 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 60POS STR LONG LA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10880 pcs | Data sheet | Interconnect Catalog3000 Series, Four-Wall Header Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Wire Wrap | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | 3000 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 1.150" (29.21mm) |
| Other Names | 00076308634612 05111153177 05400733689 07630863461 3372-6305 BLK 3372-6305 BLK-ND 3372-6305-ND 3372-6605 3372-6605-ND 3M15562 7010348190 80001414194 80400011369 80610121438 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 60 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Insulation Height | 0.680" (17.27mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Mounting Flange |
| Fastening Type | Latch Lock/Eject Hooks, Long | Detailed Description | Connector Header Through Hole 60 position 0.100" (2.54mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.610" (15.49mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
