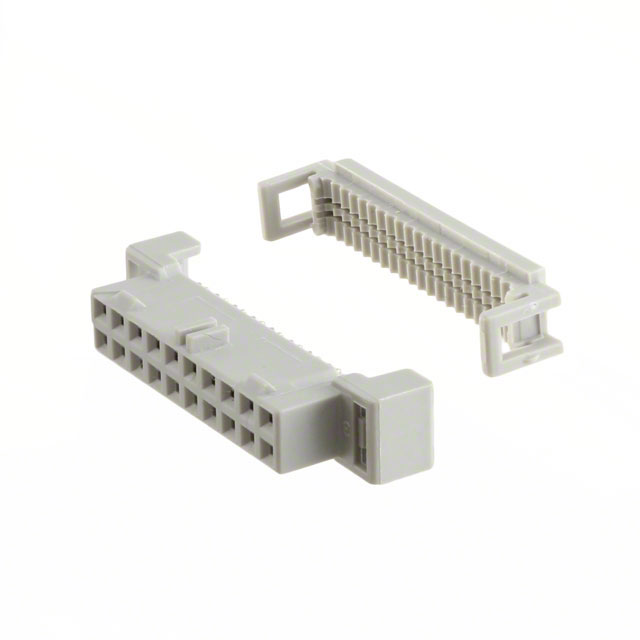

158220-0220
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 158220-0220 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 158220-0220 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 158220-0220 |
|---|---|
| Manufacturer | 3M |
| Description | 2MM RIBBON CABLE SOCKET 20 POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.202 | $1.154 | $1.058 | $1.01 | $0.962 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.841 | $0.817 | $0.697 | $0.649 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 158220-0220 | Manufacturer | 3M |
|---|---|---|---|
| Description | 2MM RIBBON CABLE SOCKET 20 POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53235 pcs | Data sheet | 158 Series Drawing |
| Category | Connectors, Interconnects | Wire Type | Ribbon Cable |
| Wire Gauge | 28 AWG | Series | 158 |
| Row Spacing | 0.079" (2.00mm) | Pitch | 0.079" (2.00mm) |
| Packaging | Bulk | Other Names | 00051115593147 05111559314 158220-0220-ND 3M156029 7010395357 80001258484 |
| Number of Rows | 2 | Number of Positions | 20 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Feed Through | Fastening Type | Friction Lock |
| Detailed Description | 20 Position Rectangular Socket Connector IDC Gold 28 AWG | Contact Type | Female Socket |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Socket | Color | Gray |
| Cable Termination | IDC |
