158220-0120-HF625/20-D-3

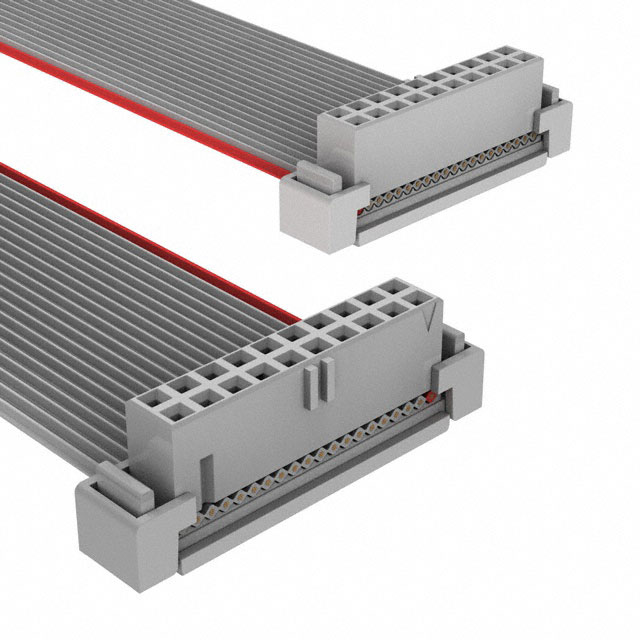

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 158220-0120-HF625/20-D-3 with confidence from Components-World.HK, 1 Year Warranty
Dowload 158220-0120-HF625/20-D-3 Details in PDFSee Product Specifications for product details.
Buy 158220-0120-HF625/20-D-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 158220-0120-HF625/20-D-3 |
|---|---|
| Manufacturer | 3M |
| Description | CABLE 20POS SOCKET TO SOCKET 3" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $2.586 | $2.48 | $2.156 | $2.048 | $1.833 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $1.725 | $1.509 | $1.434 | $1.402 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 158220-0120-HF625/20-D-3 | Manufacturer | 3M |
|---|---|---|---|
| Description | CABLE 20POS SOCKET TO SOCKET 3" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26786 pcs | Data sheet | HF625 Series Datasheet158 Series DrawingCustom Cable Part Number BreakdownRibbon Cable Assembly Length Guide |
| Category | Cable Assemblies | Usage | - |
| Shielding | Unshielded | Series | 158 |
| Pitch - Connector | 0.079" (2.00mm) | Pitch - Cable | 0.039" (1.00mm) |
| Other Names | 3M156028-HF20S-3M156028-3 | Number of Rows | 2 |
| Number of Positions | 20 | Length | 0.250' (76.20mm, 3.00") |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Detailed Description | 20 Position Cable Assembly Rectangular Socket to Socket 0.250' (76.20mm, 3.00") | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Socket to Socket |
| Color | Gray, Ribbon | Cable Termination | IDC |
