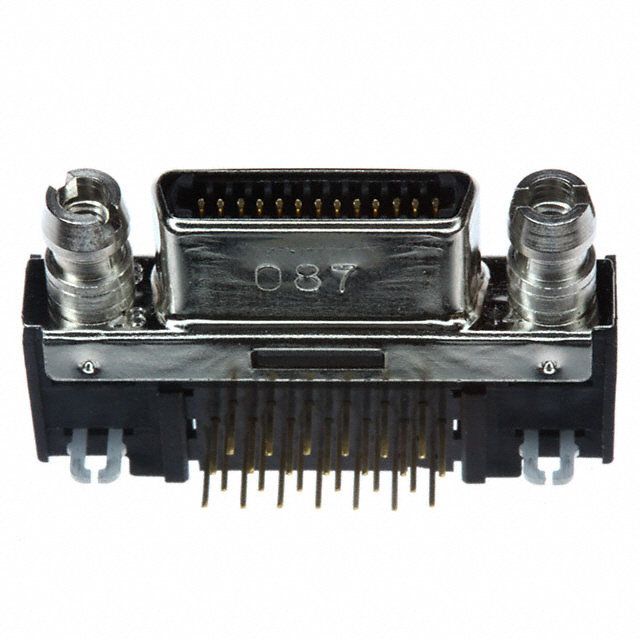

12226-5150-00FR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 12226-5150-00FR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 12226-5150-00FR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 12226-5150-00FR |
|---|---|
| Manufacturer | 3M |
| Description | CONN SDR 26POS R/A RECEPT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.966 | $3.794 | $3.449 | $3.276 | ||
| 100 pcs | 300 pcs | 500 pcs | 1000 pcs | ||
| $3.19 | $2.845 | $2.673 | $2.362 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 12226-5150-00FR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SDR 26POS R/A RECEPT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14208 pcs | Data sheet | Interconnect Catalog122 Series Right Angle Drawing |
| Category | Connectors, Interconnects | Type | - |
| Termination | Solder | Series | 122, Shrunk D Ribbon (SDR) |
| Other Names | 12226-5150-00FR-ND 12226515000FR 45 47452 34028 6 4547452340286 54745234028 7000090311 JE150323127 MSDR26 |
Number of Rows | 2 |
| Number of Positions | 26 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Flange Feature | Mating Side (M2) |
| Features | Board Lock, Shielded | Detailed Description | 26 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle | Connector Style | Outer Shroud Contacts |
